Open Grid Flooring

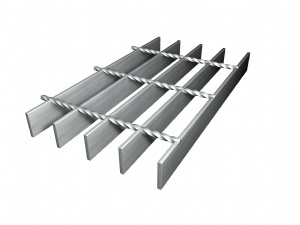

Stainless Steel Open Grid Flooring available in Grades 304 and 316, the standard panels are 497mm wide and made up of 25mm x 5mm Flat bar at 41mm centres and 6mm dia rebar restraints at 100mm centres. Larger panels are availalbe.

For an immediate quote call sales on 01236 738755 or email sales@completestainless.co.uk

Length mm

Permissible

Load (kN/m2)

Deflection

(mm/kN/m2)

Permissible

Load (kN)

Deflection

(mm/kN)

300 163.731 0.003 4.028 0.128
350 120.292 0.006 3.295 0.21
400 92.099 0.01 2.788 0.32
450 72.769 0.017 2.417 0.461
500 58.943 0.026 2.132 0.639
550 48.713 0.038 1.908 0.857
600 40.933 0.053 1.726 1.118
650 34.878 0.073 1.576 1.428
700 30.073 0.098 1.45 1.79
750 26.197 0.13 1.343 2.207
800 23.025 0.168 1.25 2.685
850 20.396 0.214 1.169 3.227
900 18.192 0.269 1.098 3.836
950 16.328 0.334 1.036 4.518
1000 14.736 0.41 0.98 5.276
