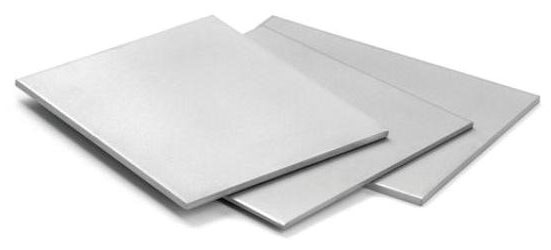

Stainless Steel Plate and Profiled Plate

Standard Stock Grades 304/304L, 316/316L, 310 and 321 these grades can be supplied from UK stock in standard stock plate sizes:

2000 x 1000....2500 x 1250.....3000 x 1500......4000 x 2000......6000 x 2000

For the above grades cut into either rectangles or squares we can offer a very fast turnaround Sheared to size from 3mm up to 16mm thick, for circles or shapes we can offer to cut using the following 4 methods:

Water Jet Cut

Max thickness 150mm Max Dimensions 8m x 4m

Plasma Cut

Max thickness 150mm Max Dimensions 12m x 3m

Plate Sawn

Max thickness 560mm Max Dimensions 8m x 3m

Laser Cut

Max thickness 30mm Max Dimensions 6m x 2m

The list of grades below are available in either of the above cutting to size services.

W. Nr.

UNS

ASTM / AISI

EN

Max thickness in stock (mm)
1.4 S 41008 410S X6Cr13 50
1.4006 S 41000 410 X12Cr13 75
1.4301 / 1.4307** S30400 / S30403 304 / 304L X5CrNi18-10 / X2CrNi18-9 150
1.4401 / 1.4404** S31600 / S31603 316 / 316L X5CrNiMo17-12-2 / X2CrNiMo17-12-2 150
1.4410* S32750 Duplex X2CrNiMoN25-7-4 80
1.4432 S31603 316L X2CrNiMo17-12-3 100
1.4435** S31603 316L (Mo+) X2CrNiMo18-14-3 70
1.4436 - 316 X3CrNiMo17-13-3 100
1.4438 S31703 317L X2CrNiMo18-15-4 75
1.4462* / - S31803 / S32205 Duplex X2CrNiMoN22-5-3 / - 100
1.4539** N08904 904L X1NiCrMoCu25-20-5 80
1.4541** / 1.4878 S32100 / S32109 321 / 321H X6CrNiTi18-10 / X8CrNiTi18-10 120
1.4542 S17400 630 X5CrNiCuNb16-4 60
1.4547 S31254 - X1CrNiMoCuN20-18-7 50
1.455 S34700 / S34709 347 / 347H X6CrNiNb18-10 25
1.4571** S31635 316Ti X6CrNiMoTi17-12-2 100
1.4828 - - X15CrNiSi20-12 90
1.4833 S30908 309S X12CrNi23-13 50
1.4845 S31008 310S X8CrNi25-21 100
1.4948 S30409 304H X6CrNi18-10 100
