Architectural and Decorative Tube

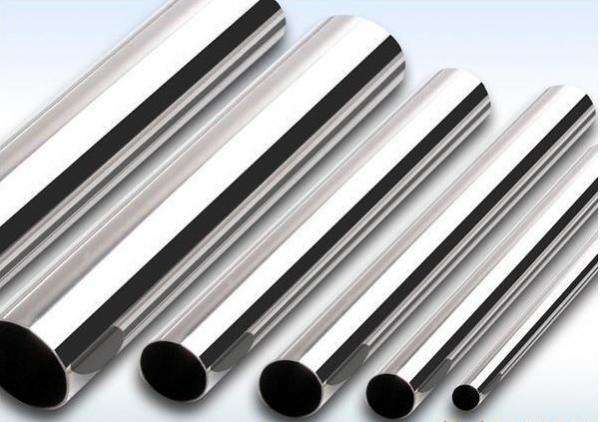

Stainless Steel Architectural and Decroative Tube available in grades 304/304L and 316/316L. The Tube is supplied in 6mtrs, we can cut to your required length.

The Finishes available are Descaled, Dull / Satin Polish and Mirror Polish.

We can polish in-house from 10mm o/d up to 204mm o/d and from a 180grit up to a 600grit on a very fast turnaround 1-3 days larger than 204mm O/D sizes take one week.

o/d wall o/d wall o/d wall
in mm in mm in mm in mm in mm in mm
12.70 x 1.50 38.10 x 1.50 76.20 x 1.50
15.88 x 1.20 x 2.00 x 2.00
x 1.50 x 3.00 x 3.00
19.05 x 1.50 42.40 x 1.50 83.00 x 1.50
21.34 x 2.00 x 2.00 84.00 x 2.00
x 2.11 x 2.50 88.90 x 2.00
x 2.77 x 2.77 x 3.05
22.22 x 1.20 x 3.00 x 4.00
x 1.50 x 3.56 x 5.49
25.40 x 1.20 48.30 x 1.50 101.60 x 1.50
x 1.50 x 2.00 x 2.00
x 2.00 x 2.50 x 3.00
x 3.00 x 2.77 x 5.74
26.67 x 2.00 x 3.00 128.00 x 1.50
x 2.19 x 3.68 129.00 x 2.00
x 2.87 50.80 x 1.50 139.00 x 2.00
28.00 x 1.50 x 2.00 141.30 x 3.4
29.00 x 2.00 x 3.00 x 6.55
31.75 x 1.50 53.00 x 1.50 153.00 x 1.50
x 2.00 54.00 x 2.00 154.00 x 2.00
x 3.00 60.33 x 1.50 156.00 x 3.00
33.40 x 2.00 x 2.00 168.30 x 2.00
x 2.50 x 2.77 x 2.50
x 2.77 x 3.00 x 3.00
x 3.38 x 3.91 x 3.40
63.50 x 1.50 203.00 x 1.50
x 2.00 204.00 x 2.00
x 3.00 219.00 x 2.00
68.00 x 1.50 x 2.90
69.00 x 2.00 x 3.76
254.00 x 2.00
256.00 x 3.00
273.05 x 2.00
x 3.00
x 4.19
