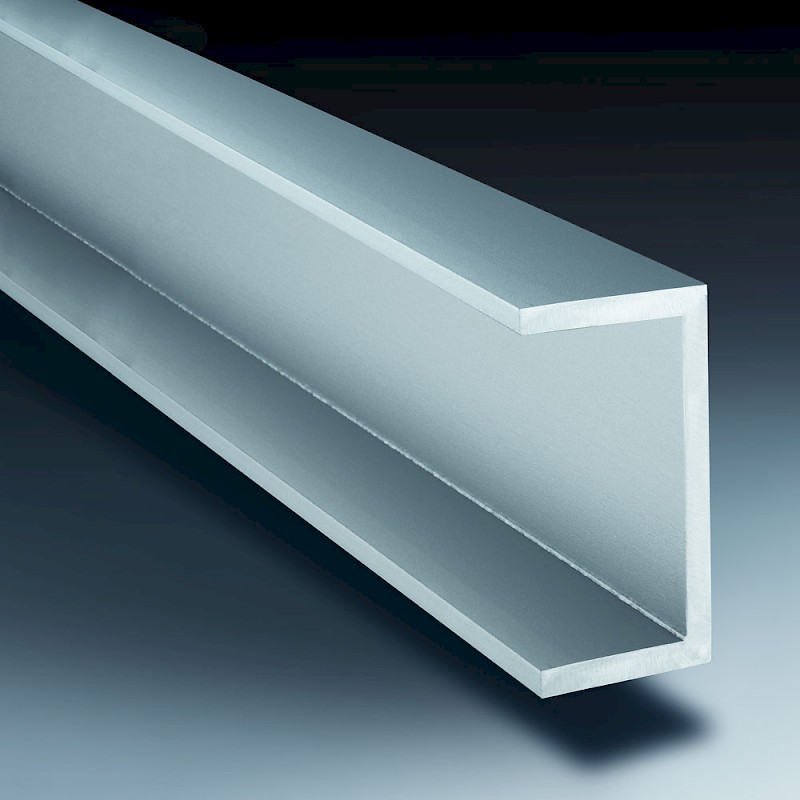

Channel

Stainless Steel Channel available in Grades 304/304L and 316/316L

Supplied in 6mtr lengths, we can cut to your required length, the finish is Descaled, some sizes can be Satin or Mirror polished, please contact Sales.

We can also supply a much wider range of Channel sizes in Cold Formed Channel from Plate, the length is anything up to 3mtrs.

Kg M
20mm Base 10mm Legs thickness 3 x 3.5 0.86
30mm Base 15mm Legs thickness 3 x 3.5 1.37
30mm Base 15mm Legs thickness 4 x 4.5 1.78
40mm Base 20mm Legs thickness 3 x 3.5 1.8
40mm Base 20mm Legs thickness 4 x 4.5 2.4
40mm Base 35mm Legs thickness 5 x 7 4.8
50mm Base 25mm Legs thickness 3 x 3.5 2.28
50mm Base 25mm Legs thickness 5 x 5 3.6
50mm Base 25mm Legs thickness 5 x 6 4.2
50mm Base 25mm Legs thickness 6 x 6 4.1
50mm Base 38mm Legs thickness 5 x 7 5.7
60mm Base 30mm Legs thickness 5 x 5 4.37
60mm Base 30mm Legs thickness 6 x 6 5.1
65mm Base 42mm Legs thickness 5.5 x 7.5 7.4
80mm Base 40mm Legs thickness 4 x 4 4.9
80mm Base 40mm Legs thickness 5 x 5 5.94
80mm Base 40mm Legs thickness 6 x 6 7
80mm Base 45mm Legs thickness 6 x 6 7.6
80mm Base 45mm Legs thickness 6 x 8 8.64
100mm Base 50mm Legs thickness 4 x 4 6.2
100mm Base 50mm Legs thickness 5 x 5 7.65
100mm Base 50mm Legs thickness 6 x 6 8.94
100mm Base 50mm Legs thickness 6 x 8.5 10.6
120mm Base 55mm Legs thickness 7 x 9 13.5
120mm Base 60mm Legs thickness 5 x 5 9.2
120mm Base 60mm Legs thickness 6 x 6 10.93
130mm Base 65mm thickness 6 x 6 12.08
140mm Base 60mm Legs thickness 7 x 10 16.4
140mm Base 60mm Legs thickness 7 x 7 14.62
150mm Base 75mm Legs thickness 6 x 6 13.8
160mm Base 65mm Legs thickness 7.5 x 10.5 18.8
160mm Base 80mm Legs thickness 8 x 8 19.2
180mm Base 70mm Legs thickness 8 x 11 22
180mm Base 70mm Legs thickness 9 x 12 24.2
200mm Base 75mm Legs thickness 8.5 x 11.5 25.3
200mm Base 75mm Legs thickness 10 x 13 29.52
200mm Base 100mm Legs thickness 6 x 6 18.7
200mm Base 100mm Legs thickness 8 x 8 24.6
200mm Base 100mm Legs thickness 10 x 10 30.4
220mm Base 80mm Legs thickness 9 x 12.5 29.4
220mm Base 80mm Legs thickness 10 x 13 31.8
240mm Base 85mm Legs thickness 9.5 x 13 33.2
300mm Base 100mm Legs thickness 10 x 13 46.45
300mm Base 100mm Legs thickness 12 x 16 50.9
