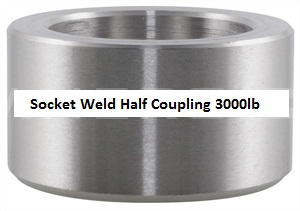

Available in Stainless Steel Grades 304L and 316L
| Nominal pipe size | B | L1 | C | D | E |
Weight |
| in. | mm | socket | mm | mm | mm | kg/e |
| 1/4" |
14.2 |
9.53 |
3.3 |
8.86 |
15.88 |
0.06 |
| 3/8" | 17.6 | 9.53 | 3.51 | 12.14 | 17.46 | 0.11 |
| 1/2" | 21.8 | 9.53 | 4.09 | 15.42 | 22.23 | 0.15 |
| 3/4" | 27.2 | 12.5 | 4.27 | 20.55 | 23.81 | 0.21 |
| 1 |
33.9 |
12.5 |
4.98 |
26.26 |
28.58 |
0.35 |
| 1¼ | 42.7 | 12.5 | 5.28 | 34.67 | 30.16 | 0.5 |
| 1½ | 48.8 | 12.5 | 5.54 | 40.51 | 31.75 | 0.65 |
| 2 | 61.2 | 16 | 6.05 | 52.12 | 41.28 | 1.1 |
