Available in Stainless Steel Grades 304L and 316L

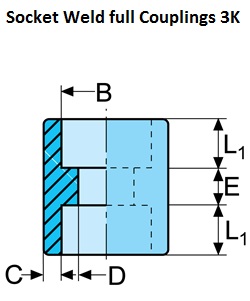

| NB Pipe Size | B | L1 | C | D | E |
Weight |
| inches | mm | socket | mm | mm | mm | kg each |
| 1/4" |
14.2 |
9.53 |
3.3 |
8.86 |
6.35 |
0.05 |
| 3/8" | 17.6 | 9.53 | 3.51 | 12.14 | 6.35 | 0.1 |
| 1/2" | 21.8 | 9.53 | 4.09 | 15.42 | 9.53 | 0.14 |
| 3/4" | 27.2 | 12.5 | 4.27 | 20.55 | 9.53 | 0.2 |
| 1" |
33.9 |
12.5 |
4.98 |
26.26 |
12.7 |
0.3 |
| 1 1/4" | 42.7 | 12.5 | 5.28 | 34.67 | 12.7 | 0.45 |
| 1 1/2" | 48.8 | 12.5 | 5.54 | 40.51 | 12.7 | 0.6 |
| 2" | 61.2 | 16 | 6.05 | 52.12 | 19.05 | 0.95 |
