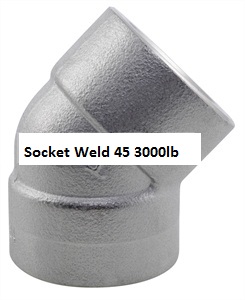

Available in Stainless Steel Grades 304L and 316L
For an immediate quote call 01236 738755 or email sales@completestainless.co.uk
| Nominal | B | L1 | C | G | D | A | Weight |
| Bore Size | mm | socket | mm | mm | mm | mm | KG each |
| 1/4" | 14.2 | 9.53 | 3.3 | 3.02 | 8.86 | 7.94 | 0.08 |
| 3/8" | 17.6 | 9.53 | 3.51 | 3.2 | 12.14 | 7.94 | 0.13 |
| 1/2" | 21.8 | 9.53 | 4.09 | 3.73 | 15.42 | 11.11 | 0.18 |
| 3/4" | 27.2 | 12.5 | 4.27 | 3.91 | 20.55 | 12.7 | 0.3 |
| 1 | 33.9 | 12.5 | 4.98 | 4.55 | 26.26 | 14.29 | 0.45 |
| 1¼ | 42.7 | 12.5 | 5.28 | 4.85 | 34.67 | 17.46 | 0.75 |
| 1½ | 48.8 | 12.5 | 5.54 | 5.08 | 40.51 | 20.64 | 0.9 |
| 2 | 61.2 | 16 | 6.05 | 5.54 | 52.12 | 25.4 | 1.3 |
