Welded Pipe ASTM A358 class 1

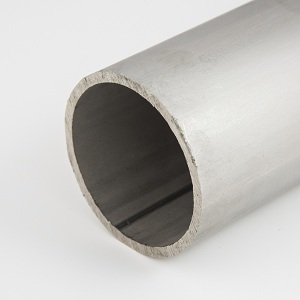

STAINLESS STEEL WELDED PIPE ASTM A358 Class 1 Fully Double Welded with X-ray Test, available in grades 304L and 316L.

Pipe available in 6mtr lengths, we can offer cut pieces on all sizes

Wall thickness listed below in MM if there is a Wall thickness listed the product is available.

Pipe O/D SCH STD SCH XS SCH F SCH SCH SCH SCH
Size 10s 40s 80s 80 100 120 160
8" 219.08 3.76 8.18 12.7
10" 273.05 4.19 9.27 12.7 15.09 21.44 28.58
12" 323.85 4.57 9.53 12.7 17.48 21.44
14" 355.60 4.78 9.53 12.7 19.05
16" 406.4 4.78 9.53 12.7 21.44
18" 457.20 4.78 9.53 12.7
20" 508.00 5.53 9.53 12.7
24" 609.6 6.35 9.53 12.7
30" 762.00 7.92
