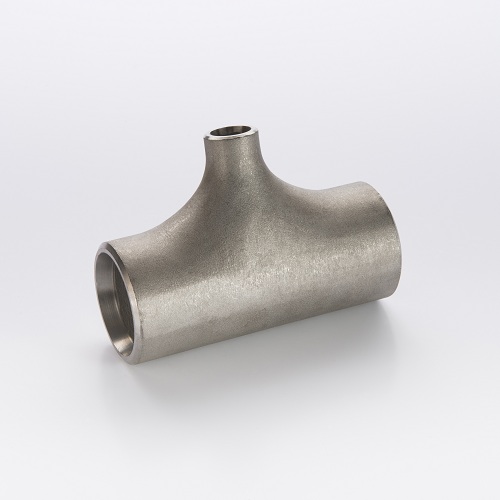

STAINLESS STEEL NOMINAL BORE REDUCING TEES
Available in grades 304/304L and 316/316
Welded available in all sizes seamless up to 12"
For the Full range of wall thickensses go to the Welded Pipe page or the Seamless Pipe page.
| Nominal | |||||
| Pipe Size | Outside diameter | Center-to-End | |||
| Run Size " |
Outlet Size |
Run Size |
Outlet Size |
Run (C) | Outlet (M) |
| mm | mm | mm | mm | ||
| 1/2" | 1/4" | 21.3 | 13.7 | 25 | 25 |
| 3/8" | 17.3 | ||||
| 3/4" | 3/8" | 26.7 | 17.3 | 29 | 29 |
| 1/2" | 21.3 | ||||
| 1" | 1/2" | 33.4 | 21.3 | 38 | 38 |
| 3/4" | 26.7 | ||||
| 1 1/4" | 1/2" | 42.2 | 21.3 | 48 | 48 |
| 3/4" | 26.7 | ||||
| 1" | 33.4 | ||||
| 1 1/2" | 1/2" | 48.3 | 21.3 | 57 | 57 |
| 3/4" | 26.7 | ||||
| 1" | 33.4 | ||||
| 1 1/4" | 42.2 | ||||
| 2" | 3/4" | 60.3 | 26.7 | 64 | 44 |
| 1" | 33.4 | 51 | |||
| 1 1/4" | 42.2 | 57 | |||
| 1 1/2" | 48.3 | 60 | |||
| 2 1/2" | 1" | 73 | 33.4 | 76 | 57 |
| 1 1/4" | 42.2 | 64 | |||
| 1 1/2" | 48.3 | 67 | |||
| 2" | 60.3 | 70 | |||
| 3" | 1 1/4" | 88.9 | 42.2 | 86 | 70 |
| 1 1/2" | 48.3 | 73 | |||
| 2" | 60.3 | 76 | |||
| 2 1/2" | 73 | 83 | |||
| 3 1/2" | 1 1/2" | 101.6 | 48.3 | 95 | 79 |
| 2" | 60.3 | 83 | |||
| 2 1/2" | 73 | 89 | |||
| 3" | 88.9 | 92 | |||
| 4" | 1 1/2" | 114.3 | 48.3 | 105 | 86 |
| 2" | 60.3 | 89 | |||
| 2 1/2" | 73 | 95 | |||
| 3" | 88.9 | 98 | |||
| 3 1/2" | 101.6 | 102 | |||
| 5" | 2" | 141.3 | 60.3 | 124 | 105 |
| 2 1/2" | 73 | 108 | |||
| 3" | 88.9 | 111 | |||
| 3 1/2" | 101.6 | 114 | |||
| 4" | 114.3 | 117 | |||
| 6" | 2 1/2" | 168.3 | 73 | 143 | 121 |
| 3" | 88.9 | 124 | |||
| 3 1/2" | 101.6 | 127 | |||
| 4" | 114.3 | 130 | |||
| 5 | 141.3 | 137 | |||
| 8" | 3 1/2" | 219.1 | 101.6 | 178 | 152 |
| 4" | 114.3 | 156 | |||
| 5" | 141.3 | 162 | |||
| 6" | 168.3 | 168 | |||
| 10" | 4" | 273 | 114.3 | 216 | 184 |
| 5" | 141.3 | 191 | |||
| 6" | 168.3 | 194 | |||
| 8" | 219.1 | 203 | |||
| 12" | 5" | 323.8 | 141.3 | 254 | 216 |
| 6" | 168.3 | 219 | |||
| 8" | 219.1 | 229 | |||
| 10" | 273 | 241 | |||
| 14" | 6" | 355.6 | 168.3 | 279 | 238 |
| 8" | 219.1 | 248 | |||
| 10" | 273 | 257 | |||
| 12" | 323.8 | 270 | |||
| 16" | 6" | 406.4 | 168.3 | 305 | 264 |
| 8" | 219.1 | 273 | |||
| 10" | 273 | 283 | |||
| 12" | 323.8 | 295 | |||
| 14" | 355.6 | 305 | |||
| 18" | 8" | 457 | 219.1 | 343 | 298 |
| 10" | 273 | 308 | |||
| 12" | 323.8 | 321 | |||
| 14" | 355.6 | 330 | |||
| 16" | 406.4 | 330 | |||
| 20" | 8" | 508 | 219.1 | 381 | 324 |
| 10" | 273 | 333 | |||
| 12" | 323.8 | 346 | |||
| 14" | 355.6 | 356 | |||
| 16" | 406.4 | 356 | |||
| 18" | 457 | 368 | |||
| 22" | 10" | 559 | 273 | 419 | 359 |
| 12" | 323.8 | 371 | |||
| 14" | 355.6 | 381 | |||
| 16" | 406.4 | 381 | |||
| 18" | 457 | 394 | |||
| 20" | 508 | 406 | |||
| 24" | 10" | 610 | 273 | 432 | 384 |
| 12" | 323.8 | 397 | |||
| 14" | 355.6 | 406 | |||
| 16" | 406.4 | 406 | |||
| 18" | 457 | 419 | |||
| 20" | 508 | 432 | |||
| 22" | 559 | 432 | |||
