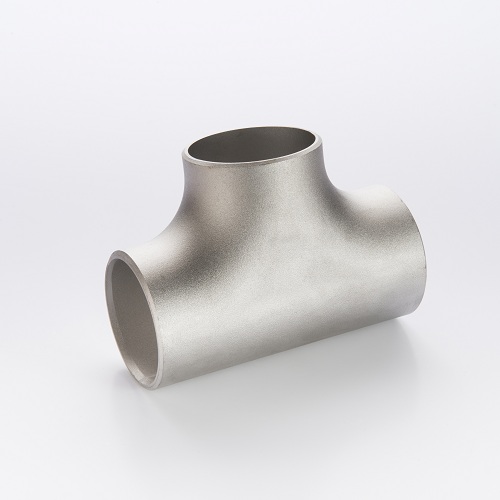

STAINLESS STEEL NOMINAL BORE EQUAL TEES
Available in grades 304/304L and 316/316L
Welded full range of sizes, Seamless up to 12"
Welded available in schedule 10s and 40s, Seamless schedule 10s, 40s and 80s, for the full list of wall thickensses refer to the Welded Pipe page and Seamless Pipe page.
| Nominal | Outside | Overall | Overall | |||
| Pipe | Diameter | Length | Height | |||
| Size | A | B | ||||
| mm | mm | mm | ||||
| 1/2" | 21 | 50 | 35.5 | |||
| 3/4" | 27 | 58 | 42.5 | |||
| 1" | 33 | 66 | 49.5 | |||
| 1 1/4" | 42 | 84 | 63 | |||
| 1 1/2" | 48 | 114 | 71 | |||
| 2" | 60 | 128 | 94 | |||
| 2 1/2" | 73 | 152 | 112.5 | |||
| 3" | 89 | 172 | 130.5 | |||
| 3 1/2" | 102 | 190 | 146 | |||
| 4" | 114 | 210 | 162 | |||
| 5" | 141 | 282 | 211.5 | |||
| 6" | 168 | 336 | 252 | |||
| 8" | 219 | 438 | 328.5 | |||
| 10" | 273 | 432 | 352.5 | |||
| 12" | 324 | 508 | 416 | Seamless available up to 12" | ||
| 14" | 356 | 558 | 457 | |||
| 16" | 406 | 610 | 508 | |||
| 18" | 457 | 686 | 571.5 | |||
| 20" | 508 | 686 | 597 | |||
| 24" | 610 | 762 | 686 | |||
