Flange Tables 1/2" up to 2"

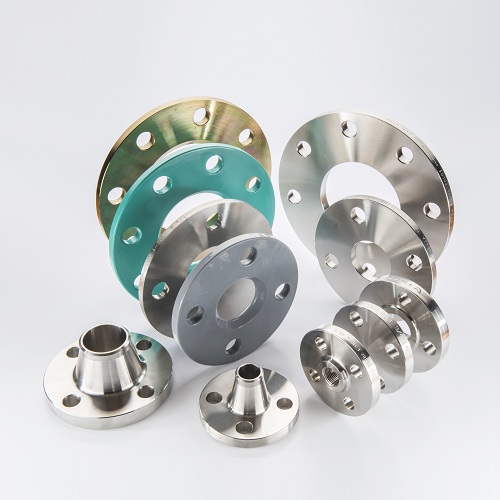

Stainless Steel Flange Tables 1/2" up to 2"

The Tables Below have the Standards for each Flange Type and Size

The Standards were written for Nominal Bore Pipe sizes, we can offer most Slip On Flanges to suite Thin Wall Metric and Hygienic, we can also offer most Flanges as Lap Joint Backers for Stub Ends and Pressed Collars and the thickness can be reduced to suit thin wall tube.

For an immediate quote call sales on 01236 738755 or email sales@completestainless.co.uk

Please Scroll down for the details on each Flange type.

Nominal Size 15mm (1/2" )
Type of Diameter PCD Number Diameter Diameter Diameter Height of Thickness
Flange of flange of Bolts of bolts of holes of raised face raised face of flange
PN6 80 55 4 M10 11 40 2 12
PN1O 95 65 4 M12 14 45 2 14
PN16 95 65 4 M12 14 45 2 14
PN25 95 65 4 M12 14 45 2 14
PN4O 95 65 4 M12 14 45 2 14
PN64 105 75 4 M12 14 45
PN100 105 75 4 M12 14 45
PN16O 105 75 4 M12 14 45
PN250 130 90 4 M16 18 45
125/150 89 60 4 13 16 35 1.6 11
300 95 67 4 13 16 35 1.6 14.3
600 95 67 4 13 16 35 6.3 14.3
900 121 83 4 19 22 35 6.3 22
1500 121 83 4 19 22 35 6.3 22
Table A 95 67 4 13 14 4.76
Table D 95 67 4 13 14 4.76
TableE 95 67 4 13 14 6.35
Table F 95 67 4 13 14 9.53
TableH 114 83 4 16 17 57
TabIeJ 114 83 4 16 17 57
TableK 114 83 4 16 17 64
TableR 114 83 4 16 17 64
Table S 127 89 4 19 22 64
TableT 140 102 4 19 22 64

Nominal Size 20mm (3/4")
Type of Diameter PCD Number Diameter Diameter Diameter Height of Thickness
Flange of flange of Bolts of bolts of holes of raised face raised face of flange
PN6 90 65 4 M10 11 50 2 14
PN10 105 75 4 M12 14 58 2 16
PN16 105 75 4 M12 14 58 2 16
PN25 105 75 4 M12 14 58 2 16
PN40 105 75 4 M12 14 58 2 16
PN64 130 90 4 M16 18 58
PN100 130 90 4 M16 18 58
PN160 130 90 4 M16 18 58
PN250 135 95 4 M18 18 58
125/150 98 70 4 13 16 43 1.6 12.7
300 117 83 4 16 19 43 1.6 16
600 114 83 4 16 19 43 6.3 16
900 130 89 4 19 22 43 6.3 25
1500 130 89 4 19 22 43 6.3 25
Table A 102 73 4 13 14 4.75
Table D 102 73 4 13 14 4.75
TableE 102 73 4 13 14 6.35
Table F 102 73 4 13 14 9.53
TableH 114 83 4 16 17 57
TabIeJ 114 83 4 16 17 57
TableK 114 83 4 16 17 64
TableR 114 83 4 16 17 64
Table S 127 89 4 19 22 64
TableT 140 102 4 19 22 64

Nominal Size 25 mm (1")
Type of Diameter PCD Number Diameter Diameter Diameter Height of Thickness
Flange of flange of Bolts of bolts of holes of raised face raised face of flange
PN6 100 75 4 M10 11 60 2 14
PN10 115 85 4 M12 14 88 2 16
PN16 115 85 4 M12 14 88 2 16
PN25 115 85 4 M12 14 68 2 16
PN40 115 85 4 M12 14 68 2 16
PN64 140 100 4 M16 18 68
PN100 143 100 4 M16 18 68
PN160 140 100 4 M16 18 68
PN250 150 105 4 M20 22 68
125/150 114 79 4 13 18 51 1.6 14
300 124 89 4 16 19 51 1.6 17
600 124 89 4 18 19 51 6.3 17
900 149 102 4 22 25 51 6.3 29
1500 149 102 4 22 25 51 6.3 29
Table A 114 83 4 13 14 4.75
TableD 114 83 4 13 14 4.75
Table E 114 83 4 13 14 7.14
Table F 121 87 4 16 17 9.53
Table H 121 87 4 16 17 64
TableJ 121 87 4 16 17 64
Table K 127 95 4 16 17 76
TableR 127 95 4 16 17 76
Table S 140 102 4 19 22 76
TableT 146 114 4 19 22 76

Nominal Size

32mm (1 1/4")
Type of Diameter PCD Number Diameter Diameter Diameter Height of Thickness
Flange of flange of Bolts of bolts of holes of raised face raised face of flange
PN6 120 90 4 M12 14 70 2 16
PN10 140 100 4 M16 18 78 2 18
PN16 140 100 4 M16 18 78 2 18
PN25 140 100 4 M16 18 78 2 18
PN40 140 100 4 M16 18 78 2 18
PN64 155 110 4 M20 22 78
PN100 155 110 4 M20 22 78
PN160 155 110 4 M20 22 78
PN250 165 120 4 M20 22 78
125/150 117 89 4 13 16 64 1.6 15.9
300 133 98 4 16 19 64 1.6 19
600 133 98 4 16 19 64 6.3 21
900 459 111 4 22 25 64 6.3 29
1500 159 111 4 22 25 64 6.3 29
Table A 121 87 4 13 14 6.35
Table D 121 87 4 13 14 6.35
TableE 121 87 4 13 14 7.93
Table F 133 98 4 16 17 12.7
TableH 133 98 4 16 17 76
TabIeJ 133 98 4 16 17 76
TableK 133 98 4 16 17 76
TableR 133 98 4 16 17 76
Table S 146 114 4 19 22 83
TableT 159 121 4 22 25 83

Nominal Size

40mm (1 1/2")
Type of Diameter PCD Number Diameter Diameter Diameter Height of Thickness
Flange of flange of Bolts of bolts of holes of raised face raised face of flange
PN6 130 100 4 M12 14 80 3 16
PN10 150 110 4 M16 18 88 3 18
PN16 150 110 4 M16 18 88 3 18
PN25 150 110 4 M16 18 88 3 18
PN40 150 110 4 M16 18 88 3 18
PN64 170 125 4 M20 22 88
PN100 170 125 4 M20 22 88
PN160 170 125 4 M20 22 88
PN250 185 135 4 M24 26 88
125/150 127 98 4 13 16 73 2 17.5
300 156 114 4 19 22 73 2 20.6
600 156 114 4 19 22 73 6 22.2
900 178 124 4 25 29 73 6 31.8
1500 178 124 4 25 29 73 6 31.8
Table A 133 98 4 13 14 . 6.35
Table D 133 98 4 13 14 6.35
TableE 133 98 4 13 14 8.7
Table F 140 105 4 16 17 12.7
TableH 140 105 4 16 17 83
TabIeJ 140 105 4 16 17 83
TableK 152 114 4 19 22 89
TableR 152 114 4 19 22 89
Table S 159 121 4 19 22 89
TableT 171 133 8 19 22 89

Nominal Size

50mm (2")
Type of Diameter PCD Number Diameter Diameter Diameter Height of Thickness
Flange of flange of Bolts of bolts of holes of raised face raised face of flange
PN6 140 110 4 M12 14 90 3 16
PN10 165 125 4 M16 18 102 3 20
PN16 165 125 4 M16 18 102 3 20
PN25 165 125 4 M16 18 102 3 20
PN40 165 125 4 M16 18 102 3 20
PN64 180 135 4 22 22 102
PN100 195 145 4 26 26 102
PN160 195 145 4 26 26 102
PN250 200 150 4 26 26 102
125/150 152 121 4 16 19 92 1.6 19
300 165 127 8 16 19 92 1.6 22
600 165 127 8 16 19 92 6.3 25
900 216 165 8 22 25 92 6.3 38
1500 216 165 8 22 25 92 6.3 38
Table A 152 114 4 16 17 7.93
Table D 152 114 4 16 17 7.93
TableE 152 114 4 16 17 9.53
Table F 165 127 4 16 17 15.88
TableH 165 127 4 16 17 102
TabIeJ 165 127 4 19 22 102
TableK 165 127 8 16 17 102
TableR 165 127 8 16 17 102
Table S 171 133 8 19 22 89
TableT 184 146 8 19 22 102
