Flange Tables 21/2" up to 8"

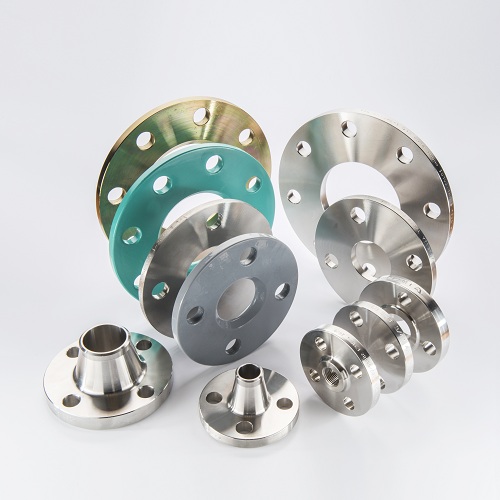

Stainless Steel Flange Tables 2 1/2" through to 8"

The Tables Below have the Standards for each Flange Type and Size

The Standards were written for Nominal Bore Pipe sizes, we can offer most Slip On Flanges to suite Thin Wall Metric and Hygienic, we can also offer most Flanges as Lap Joint Backers for Stub Ends and Pressed Collars and the thickness can be reduced to suit thin wall tube.

For an immediate quote call sales on 01236 738755 or email sales@completestainless.co.uk

Please Scroll down for the details on each Flange type.

Nominal Size 65mm (2 1/2" )
Flange Flange Number Diameter Diameter Diameter Height Thickness
Type Diameter PCD of bolts of bolts of holes R/Face R/Face of flange
PN6 160 130 4 M12 14 110 3 16
PN10 185 145 4 M16 18 122 3 20
PN16 185 145 4 M16 18 122 3 20
PN25 185 145 8 M16 18 122 3 22
PN40 185 145 8 M16 18 122 3 22
PN64 205 160 8 M20 22 122
PN100 220 170 8 M24 26 122
PN160 220 170 8 M24 26 122
PN250 230 180 8 M24 26 122
125/150 178 140 4 16 19 105 1.6 22.2
300 191 149 8 19 22 105 1.6 25.4
600 191 149 8 19 22 105 6.3 29
900 244 191 8 25 29 105 6.3 41
1500 244 191 8 25 29 105 6.3 41
Table A 165 127 4 16 17 7.93
Table D 165 127 4 16 17 7.93
TableE 165 127 4 16 17 10.3
Table F 184 146 8 16 17 16
TableH 184 146 8 16 17 114
TabIeJ 184 146 8 19 22 114
TableK 184 146 8 19 22 114
TableR 184 146 8 19 22 114
Table S 184 146 8 19 22 102
TableT 203 165 8 22 25 114
Nominal Size 80mm (3")
Flange Flange Number Diameter Diameter Diameter Height Thickness
Type Diameter PCD of bolts of bolts of holes R/Face R/Face of flange
PN6 190 150 4 M16 18 128 3 18
PN1O 200 160 8 M16 18 138 3 20
PN16 200 160 8 M16 18 138 3 20
PN25 200 160 8 M16 18 138 3 24
PN4O 200 160 8 M16 18 138 3 24
PN64 215 170 8 M20 22 138
PN100 230 180 8 M24 26 138
PN16O 230 180 8 M24 26 138
PN250 255 200 8 M27 30 138
125/150 191 152 4 16 19 127 1.6 23.8
300 210 168 8 19 22 127 1.6 29
600 210 168 8 19 22 127 6.3 32
900 241 192 8 22 25 127 6.3 38
1500 267 203 8 29 32 127 6.3 48
Table A 184 146 4 16 17 9.53
Table D 184 146 4 16 17 9.53
TableE 184 146 4 16 17 11
Table F 203 165 8 16 17 16
TableH 203 165 8 16 17 127
TabIeJ 203 165 8 19 22 127
TableK 203 165 8 19 22 127
TableR 203 165 8 19 22 127
Table S 203 165 8 22 25 114
TableT 235 191 8 25 29 127
Nominal Size 100mm 4"
Flange Flange Number Diameter Diameter Diameter Height Thickness
Type Diameter PCD of bolts of bolts of holes R/Face R/Face of flange
PN6 210 170 4 M16 18 148 3 18
PN10 220 180 8 M16 18 158 3 22
PN16 220 180 8 M16 18 158 3 22
PN25 235 190 8 M20 22 162 3 26
PN40 235 190 8 M20 22 162 3 26
PN64 250 200 8 M24 26 162
PN100 265 210 8 M27 30 162
PN160 265 210 8 M27 30 162
PN250 300 230 8 M30 33 162
125/150 229 191 8 16 19 157 1.6 24
300 254 200 8 19 22 157 1.6 32
600 273 216 8 22 25 157 6.3 38
900 292 235 8 29 32 157 6.3 44
1500 311 241 8 32 35 157 6.3 54
Table A 216 178 4 16 17 9.53
Table D 216 178 4 16 17 9.53
TableE 216 178 8 16 17 12.7
Table F 229 191 8 16 17 19
TableH 229 191 8 16 17 152
TabIeJ 229 191 8 19 22 152
TableK 241 197 8 22 25 152
TableR 241 197 8 22 25 152
Table S 248 203 8 25 29 159
TableT 286 235 8 29 32 159
Nominal Size 150mm 6"
Flange Flange Number Diameter Diameter Diameter Height Thickness
Type Diameter PCD of bolts of bolts of holes R/Face R/Face of flange
PN6 265 225 8 M16 18 202 3 20
PN10 285 240 8 M20 22 212 3 24
PN16 285 240 8 M20 22 212 3 24
PN25 300 250 8 M24 26 218 3 30
PN40 300 250 8 M24 26 218 3 30
PN64 345 280 8 M30 33 218
PN100 355 290 12 M30 33 218
PN160 355 290 12 M30 33 218
PN250 390 320 12 M33 36 218
125/150 279 241 8 19 22 216 1.6 25
300 318 270 12 19 22 216 1.6 37
600 356 292 12 25 29 216 6.3 48
900 381 318 12 29 32 216 6.3 56
1500 394 318 12 35 38 216 6.3 83
Table A 279 235 4 16 17 12.7
Table D 279 235 8 16 17 12.7
TableE 279 235 8 19 22 17.46
Table F 305 260 12 19 22 22
TableH 305 260 12 19 22 210
TabIeJ 305 260 12 22 25 210
TableK 305 260 12 22 25 210
TableR 305 260 12 22 25 210
Table S 324 273 12 25 29 210
TableT 375 318 12 32 35 229
Nominal Size 200mm 8"
Flange Flange Number Diameter Diameter Diameter Height Thickness
Type Diameter PCD of bolts of bolts of holes R/Face R/Face of flange
PN6 320 280 8 M16 18 258 3 22
PN10 340 295 8 M20 22 268 3 24
PN16 340 295 12 M20 22 268 3 26
PN25 360 310 12 M24 26 278 3 32
PN40 375 320 12 M27 30 285 3 36
PN64 415 345 12 M33 36 285
PN100 430 360 12 M33 36 285
PN160 430 360 12 M33 36 285
PN250 485 400 12 M33 42 285
125/150 343 298 8 19 22 270 1.6 29
300 381 330 12 22 25 270 1.6 41
600 419 349 12 29 32 270 6.3 56
900 470 394 12 35 38 270 6.3 64
1500 483 394 12 41 44 270 6.3 92
Table A 337 292 8 16 17 12.7
Table D 337 292 8 16 17 12.7
TableE 337 292 8 19 22 19.03
Table F 368 324 12 19 22 25.4
TableH 368 324 12 19 22 260
TabIeJ 368 324 12 22 25 260
TableK 368 318 12 25 29 260
TableR 368 324 12 25 29 260
Table S 413 356 12 32 35 373
TableT 476 406 12 38 41 298
