Flange Tables 10" up to 24"

Flange Tables 10" through to 24"

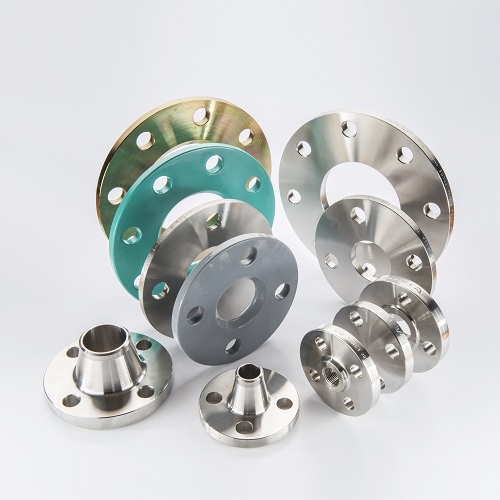

The Tables Below have the Standards for each Flange Type and size

The Standards were written for Nominal Bore Pipe sizes, we can offer most Slip On Flanges to suite Thin Wall Metric and Hygienic, we can also offer most Flanges as Lap Joint Backers for Stub Ends and Pressed Collars and the thickness can be reduced to suit thin wall tube.

For an immediate quote call sales on 01236 738755 or email sales@completestainless.co.uk

Nominal Size 250mm (10")

Flange Flange Number Diameter Diameter Diameter Height Thickness
Type Diameter PCD of bolts of bolts of holes R/Face R/Face of flange
PN6 375 335 12 M16 18 312 3 24
PN10 395 350 12 M20 22 320 3 26
PN16 405 355 12 M24 26 320 3 29
PN25 425 370 12 M27 30 335 3 35
PN40 450 385 12 M30 33 345 3 42
PN64 470 400 12 M33 36 345
PN100 505 430 12 M36 39 345
PN160 515 430 12 M39 42 345
PN250 585 490 12 M45 48 345
125/150 406 362 12 22 25 324 1.6 30
300 445 387 16 25 29 324 1.6 41
600 508 432 16 32 35 324 6.3 64
900 546 470 16 35 38 324 6.3 70
1500 584 483 12 41 51 324 6.3 108
Table A 406 356 8 19 22 15.88
Table D 406 356 8 19 22 15.88
TableE 406 356 12 19 22 22.2
Table F 432 381 12 22 25 28.5
TableH 432 381 12 22 25 311
TabIeJ 432 381 12 25 25 311
TableK 432 381 16 25 29 311
TableR 432 3874 16 25 29 311
Table S 483 425 16 32 35 330
TableT 559 489 16 38 41 358

Nominal Size 300mm (12")
Flange Flange Number Diameter Diameter Diameter Height of Thickness
Type Diameter PCD of bolts of bolts of holes R/Face R/Face of flange
PN6 440 395 12 M20 22 365 4 24
PN10 445 400 12 M20 22 370 4 26
PN16 460 410 12 M24 26 378 4 32
PN25 485 430 16 M27 30 395 4 38
PN40 515 450 16 M30 33 410 4 40
PN64 530 460 16 M33 36 410
PN100 585 500 16 M39 42 410
PN160 585 500 16 M39 42 410
PN250 690 590 16 M48 52 410
125/150 483 432 12 22 25 381 1.6 32
300 521 451 16 29 32 381 1.6 51
600 559 489 20 32 35 381 6.3 67
900 610 533 20 35 38 381 6.3 80
1500 673 571 16 51 54 381 6.3 124
Table A 457 406 8 19 22 19.03
Table D 457 406 12 19 22 19.03
TableE 457 406 12 22 25 25.4
Table F 489 438 16 22 25 31.75
TableH 489 438 16 22 25 362
TabIeJ 489 438 16 25 29 362
TableK 489 432 16 29 32 362
TableR 508 457 16 29 32 362
Table S 578 508 16 38 41 381
TableT 654 572 16 44 48 413

Nominal Size 350mm (14")
Flange Flange Number Diameter Diameter Diameter Height Thickness
Type Diameter PCD of bolts of bolts of holes R/Face R/Face of flange
PN6 490 445 12 M20 22 415 4 26
PN10 505 460 16 M20 22 430 4 28
PN16 520 470 16 M24 26 438 4 35
PN25 555 490 16 M30 33 450 4 42
PN40 580 510 16 M33 36 465 4 54
PN64 600 525 16 M36 39 465
PN100 655 560 16 M45 48 465
PN160
PN250
125/150 533 476 12 25 29 413 1.6 35
300 584 514 20 29 32 413 1.6 54
600 603 527 20 35 38 413 6.3 70
900 641 559 20 38 41 413 6.3 86
1500 749 635 16 57 60 413 6.3 133
Table A 527 470 22 25 22.2
Table D 527 470 8 22 25 22.2
TableE 527 470 12 22 25 28.6
Table F 552 495 12 25 29 34.9
TableH 552 495 16 25 29 419
TabIeJ 552 495 16 29 32 419
TableK 572 508 16 32 35 419
TableR 584 527 16 32 35 419
Table S 648 578 20 38 38 438
TableT

Nominal Size 400mm (16")
Flange Flange Number Diameter Diameter Diameter Height Thickness
Type Diameter PCD of bolts of bolts of holes R/Face R/Face of flange
PN6 540 495 16 M20 22 465 4 28
PN10 565 515 16 M24 23 482 4 32
PN16 580 525 16 M27 30 490 4 38
PN25 620 550 16 M33 36 505 4 46
PN40 660 585 16 M36 39 535 4 60
PN64 670 585 16 M39 42 535
PN100 715 620 16 M45 48 535
PN160
PN250
125/150 597 540 16 25 29 470 1.6 37
300 648 572 20 32 35 470 1.6 57
600 686 603 20 38 41 470 6.3 76
900 705 616 20 41 44 470 6.3 89
1500 826 705 16 64 67 470 6.3 146
Table A 578 521 12 22 25 22.2
Table D 578 521 12 22 25 22.2
TableE 578 521 12 22 25 25
Table F 610 552 20 25 29
TableH 610 552 20 25 29 483
TabIeJ 610 552 20 29 32 483
TableK 629 565 20 32 35 483
TableR 641 584 20 32 35 483
Table S 743 660 20 44 48 495
TableT

Nominal Size 450mm (18")
Flange Flange Number Diameter Diameter Diameter Height Thickness
Type Diameter PCD of bolts of bolts of holes R/Face R/Face of flange
PN6 595 550 16 M20 22 520 4 30
PN10 615 565 20 M24 26 532 4 38
PN16 640 585 20 M27 30 550 4 42
PN25 670 600 20 M33 36 555 4 50
PN40 685 610 20 M36 39 560 4 66
PN64
PN100
PN160
PN250
125/150 635 578 16 29 32 533 1.6 39.7
300 711 629 24 32 35 533 1.6 60.3
600 743 654 20 41 44 533 6.3 82.6
900 787 686 20 48 51 533 6.3 101.6
1500 914 775 16 70 73 533 6.3 161.9
Table A 641 584 12 22 25 25.4
Table D 641 584 12 22 25 25.4
TableE 641 584 16 22 25 34.9
Table F 673 610 20 29 32
TableH 673 610 20 29 32 533
TabIeJ 673 610 20 32 35 533
TableK 718 654 20 35 38 572
TableR 737 673 20 35 38 572
Table S

Nominal Size 500mm (20")
Flange Flange Number Diameter Diameter Diameter Height Thickness
Type Diameter PCD of bolts of bolts of holes R/Face R/Face of flange
PN6 645 600 20 M20 22 570 4 30
PN10 670 620 20 M24 26 585 4 38
PN16 715 650 20 M30 33 610 4 46
PN25 730 660 20 M33 36 615 4 56
PN40 755 670 20 M39 42 615 4 72
PN64 800 705 20 M45 48 615
PN100 870 760 20 M52 56 615
PN160
PN250
125/150 699 635 20 29 32 584 1.6 42.9
300 775 686 24 32 35 584 1.6 63.5
600 813 724 24 41 44 584 6.3 88.9
900 857 749 20 51 54 584 6.3 107.9
1500 984 832 16 76 79 584 6.3 177.8
Table A 705 641 12 22 25 28.6
Table D 705 641 16 22 25 28.6
TableE 705 641 16 22 25 38.1
Table F 737 673 24 29 32
TableH 737 673 24 29 32 597
TabIeJ 737 673 24 32 35 597
TableK 787 711 20 38 41 622
TableR 806 730 20 38 41 622
Table S
TableT

Nominal Size 600mm (24")
Flange Flange Number Diameter Diameter Diameter Height Thickness
Type Diameter PCD of bolts of bolts of holes R/Face R/Face of flange
PN6 755 705 20 M24 26 670 5 32
PN10 780 725 20 M27 30 685 5 42
PN16 840 770 20 M33 36 725 5 52
PN25 845 770 20 M36 39 720 5 68
PN40 890 795 20 M45 48 735 5 84
PN64 930 820 20 M52 56 735
PN100 990 875 20 M56 62 735
PN160
PN250
125/150 813 749 20 32 35 692 1.6 47.6
300 914 813 24 38 41 692 1.6 69.8
600 940 838 24 48 51 692 6.3 101.6
900 1041 902 20 64 67 692 6.3 139.7
1500 1168 991 16 89 92 692 6.3 203.2
Table A 826 756 12 25 29 31.75
Table D 826 756 16 25 29 31.75
TableE 826 756 16 29 32 47.6
Table F 851 781 24 32 35
TableH 851 781 24 32 35
TabIeJ 851 781 24 35 38
TableK
TableR
Table S
TableT
