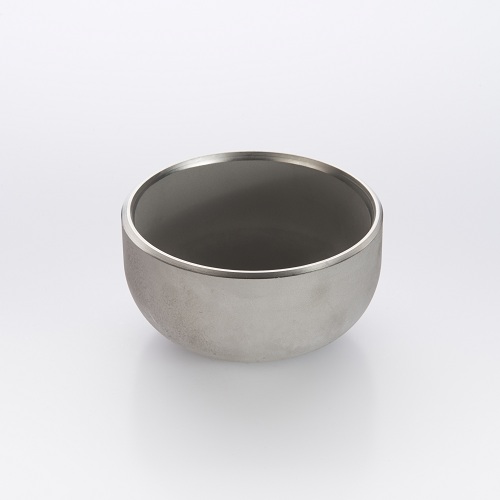

STAINLESS STEEL NOMINAL BORE END CAP
Available in grades 304/304L and 316/316L
In accordance with ANSI B16.9, ASTM A403
This product is only manufactured as Seamless, larger sizes can be manufactured as Dished Ends. For an immediate quote call sales on 01236 738755 or email sales@completestainless.co.uk
Available in schedules 10s, 40s and 80s for the wall thicknesses in mm refer to the Seamless Pipe page and the Welded Pipe Page.
| Nominal | Outside | |
| Pipe | Diameter | Height (E) |
| Size | at Bevel | |
| 1/2" | 21.34 | 25.4 |
| 3/4" | 26.6 | 25.4 |
| 1" | 33.4 | 38.1 |
| 1 1/4" | 42.1 | 38.1 |
| 1 1/2" | 48.1 | 38.1 |
| 2" | 60.3 | 38.1 |
| 2 1/2" | 73 | 38.1 |
| 3" | 88.9 | 50.8 |
| 3 1/2" | 101.6 | 63.5 |
| 4" | 114.3 | 63.5 |
| 5" | 141.3 | 76.2 |
| 6" | 168.3 | 88.9 |
| 8" | 219.1 | 101.6 |
| 10" | 273 | 127 |
| 12" | 323.8 | 152.4 |
| 14" | 355.6 | 165.1 |
| 16" | 406.4 | 177.8 |
| 18" | 457.2 | 203.2 |
| 20" | 508.8 | 228.6 |
| 24" | 609.6 | 266.7 |
