Tri Clover Clamp Unions for Metric

Tri Clover Clamp Unions or also known as Tri Clamp Unions

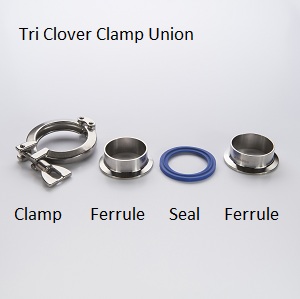

Standard Hygienic Tri Clover Clamp Union that we at Complete Stainless supply consists of:

1 Double Hinged Heavy Duty Clamp,

2 Ferrules 28mm long

1 Blue EPDM Seal, the parts can also be bought indidviually.

Other Seals Available are PTFE solid, PTFE Envelope, Viton and Silicone.

The Ferrules are 28mm long.

We also stock this product to suit Hygienic Tube sizes you will find dimensions in the Hygienic Range - Unions

For an immediate quote call sales on 01236 738755 or email sales@completestainless.co.uk

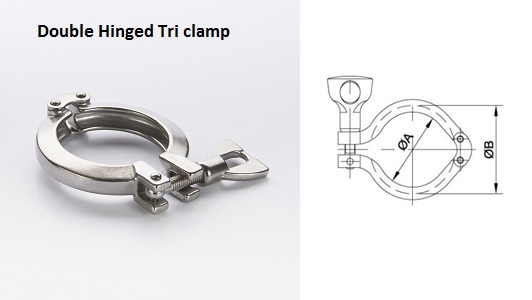

 Double hinged Tri Clover Clamp Heavy Duty Grade 304

Tube o/d inches Tube o/d in MM Dimension A
5" 129 155
6" 154 167
8" 204 217
10" 254 268
12" 304 318

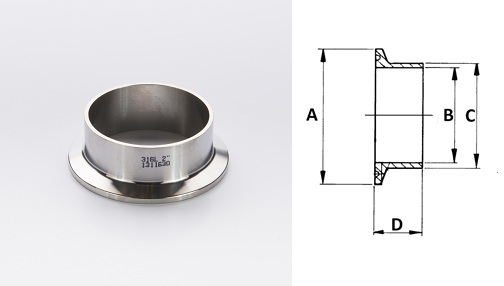

Metric Tri Clover Ferrule

Tube o/d in inches Tube o/d in MM  A  B C D
5" 129 155 125 129 28
6" 154 167 150 154 28
8" 204 217 200 204 28
10" 254 268 250 254 28
12" 304 318 300 304 28

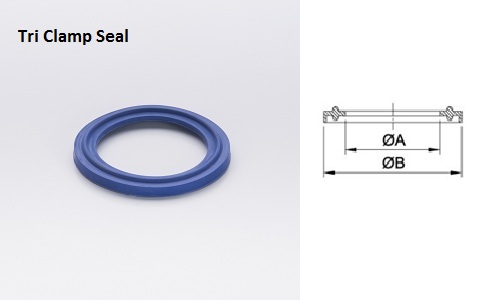

Metric Tri clover Seal EPDM

Tube o/d in inches Tube o/d in mm  A  B
5 129 5.5 155
6 154 5.5 167
8 204 5.5 217
10 254 5.5 268
12 304 5.5 318

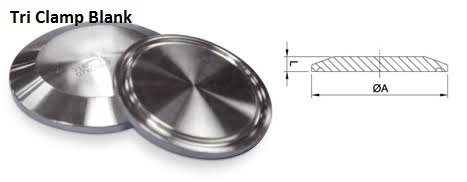

Metric Tri Clover Blank

Tube o/d   L = Thickness  A
129 10 155
154 9.5 167
204 11 217
254 11 268
304 * 318
