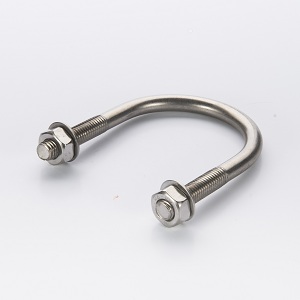

Available in Stainless Steel Grade 316L or Galvanised Mild Steel
We hold a large volume of stock available for same day despatch.
For an immediate quote call sales on 01236 738755 or email sales@completestainless.co.uk
|

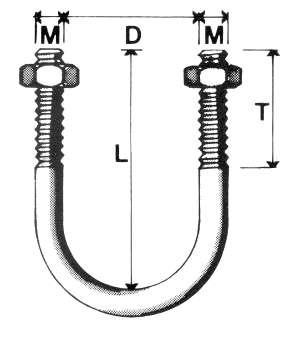

DN |
Pipe O/D | M= thread size | L | D | T |
| DN20 | 23 | 6 | 46 | 24 | 30 |
| DN25 | 28 | 6 | 52 | 29 | 30 |
| DN32 | 35 | 6 | 64 | 36 | 30 |
| DN40 | 43 | 8 | 70 | 43 | 40 |
| DN50 | 53 | 8 | 82 | 54 | 40 |
| DN65 | 69 | 8 | 96 | 72 | 40 |
| DN80 | 84 | 8 | 112 | 84 | 40 |
| DN100 | 104 | 10 | 134 | 106 | 40 |
| DN125 | 129 | 10 | 160 | 132 | 40 |
| DN150 | 154 | 12 | 184 | 156 | 40 |
| DN200 | 204 | 12 | 254 | 206 | 60 |
| DN250 | 254 | 12 | 296 | 258 | 60 |
| DN300 | 304 | 12 | 355 | 306 | 60 |
| DN350 | 356 | 12 | 406 | 356 | 60 |
| DN400 | 406 | 12 | 456 | 406 | 60 |
| DN450 | 456 | 12 | 506 | 456 | 60 |
| DN500 | 508 | 12 | 558 | 508 | 60 |
| DN600 | 608 | 12 | 658 | 608 | 60 |
