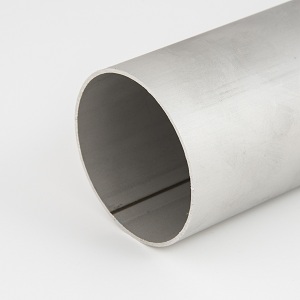

Metric Tru Bore Tube
Available in Stainless Steel Grades 304 and 316
Material available from stock same or next day service, we can cut to length in house, Saw cuts up to 356mm dia.
For an immediate quote call sales on 01236 738755 or email sales@completestainless.co.uk
| Inside | Wall | Weight | Pressure |
| Diameter | Thickness | Per Metre | Rating in Bar |
| Kilos | at 20 Deg C | ||
| 15 | 1.5 | 0.62 | 244 |
| 20 | 1.5 | 0.81 | 188 |
| 25 | 1.5 | 1 | 153 |
| 32 | 1.5 | 1.26 | 121 |
| 40 | 1.5 | 1.56 | 98 |
| 40 | 2 | 2.13 | 132 |
| 50 | 1.5 | 1.93 | 77 |
| 50 | 2 | 2.6 | 108 |
| 65 | 1.5 | 2.5 | 61 |
| 65 | 2 | 3.41 | 84 |
| 80 | 1.5 | 3.06 | 52 |
| 80 | 2 | 4.11 | 72 |
| 100 | 1.5 | 3.81 | 41 |
| 100 | 2 | 5.11 | 57 |
| 100 | 3 | 7.74 | 87 |
| 125 | 1.5 | 4.75 | 33 |
| 125 | 2 | 6.36 | 46 |
| 150 | 1.5 | 5.69 | 27 |
| 150 | 2 | 7.61 | 38 |
| 150 | 3 | 11.49 | 57 |
| 200 | 1.5 | 7.57 | 21 |
| 200 | 2 | 10.12 | 28 |
| 200 | 3 | 15.25 | 43 |
| 250 | 2 | 12.62 | 23 |
| 250 | 3 | 19.01 | 34 |
| 300 | 2 | 15.12 | 19 |
| 300 | 2.5 | 18.94 | 24 |
| 300 | 3 | 22.76 | 28 |
| 350 | 2.5 | 22.07 | 20 |
| 350 | 3 | 26.48 | 24 |
| 400 | 3 | 30.27 | 21 |
| 450 | 3 | 34.03 | 19 |
| 500 | 3 | 37.78 | 17 |
| 600 | 3 | 45.29 | 10 |
| 700 | 4 | 70.51 | 11 |
| 800 | 4 | 80.52 | 9 |
| 900 | 4 | 90.54 | 8 |
| 1000 | 4 | 100.55 | 7 |
| 1200 | 4 | 120.68 | 6 |
