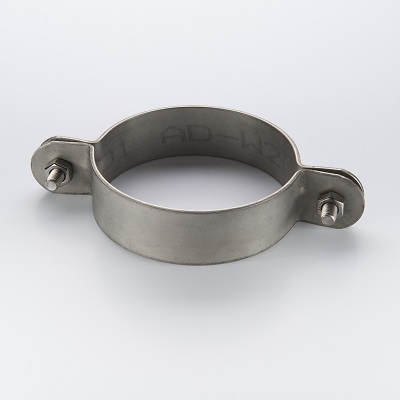

Stainless Steel Metric Split Band Pipe Clips
Available in grades 304 and 316. Also available in Mild Steel Zinc Plated see seperate page.
For an immediate quote please call sales on 01236 738755 or email sales@completestainless.co.uk.
We hold a large volume of stock in Scotland for same day despatch.
| Metric Split Band Clip | Clip | Thickness | Weight |
| Width | Per 2 halves | ||
| Tube o/d = A mm | mm | 'C' mm | Kilos |
| 18mm | 25 | 3 | 0.11 |
| 23mm | 25 | 3 | 0.13 |
| 28mm | 25 | 3 | 0.15 |
| 35mm | 25 | 3 | 0.16 |
| 43mm + 44mm | 25 | 3 | 0.18 |
| 53mm + 54mm | 25 | 3 | 0.2 |
| 68mm +69mm | 25 | 3 | 0.22 |
| 83mm + 84mm | 25 | 3 | 0.25 |
| 103mm + 104mm | 25 | 3 | 0.3 |
| 128mm + 129mm | 40 | 6 | 0.6 |
| 153 +154 +155 +156 | 40 | 6 | 0.65 |
| 203 +204 + 205 + 206 | 40 | 6 | 0.8 |
| 254 + 255 + 256 | 40 | 6 | 0.95 |
| 304 + 305 + 306 | 40 | 6 | 1.11 |
| 354 +355 + 356 | 40 | 6 | 1.25 |
| 406 | 40 | 6 | 1.4 |
