Available in Grades 304L and 316L.
We hold a large volume of this product in stock available for a same day despatch.
For an immediate quote call sales on 01236 738755 or email sales@completestainless.co.uk

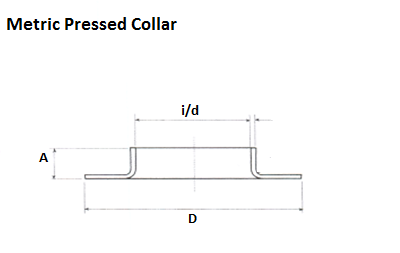

| Wall Thickness mm | Overall Diameter mm | Overall Height mm | |
| i.d | D | A | |
| 15 | 2 | 45 | 9 |
| 20 | 2 | 58 | 10 |
| 25 | 2 | 68 | 12 |
| 32 | 2 | 78 | 14 |
| 40 | 2 | 88 | 17 |
| 50 | 2 | 102 | 18 |
| 50 | 2 | 90 | 18 |
| 65 | 2 | 122 | 20 |
| 65 | 2 | 102 | 20 |
| 80 | 2 or 3 | 138 | 24 |
| 80 | 2 or 3 | 128 | 24 |
| 100 | 2 or 3 | 158 | 27 |
| 125 | 2 or 3 | 188 | 27 |
| 150 | 2 or 3 | 212 | 27 |
| 200 | 2 or 3 | 268 | 27 |
| 250 | 3 | 320 | 24 |
| 300 | 3 | 370 | 24 |
| 350 | 3 | 430 | 24 |
| 400 | 3 | 482 | 24 |
| 450 | 3 | 532 | 32 |
| 500 | 3 | 585 | 40 |
| 600 | 3 | 685 | 45 |
