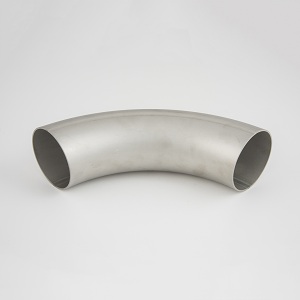

Stainless Steel D+100 Metric 90 degree Bends are available in Grade 304 and 316.
We hold a large Volume of stock in Scotland, call 01236 738755 for an immediate quote or email sales@completestainless.co.uk.

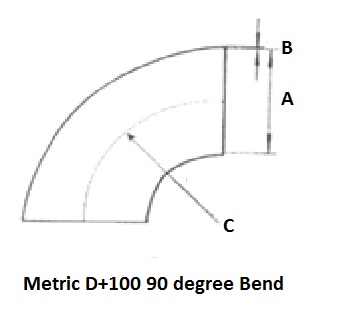

| Inside | Wall | Centre line | Weight |
| Diameter | Thickness | Radius | Per Piece |
| 'A' mm | 'B' mm | 'C' mm | Kilos |
| 80 | 2 | 180 | 1.16 |
| 100 | 2 | 200 | 1.61 |
| 100 | 3 | 200 | 2.43 |
| 125 | 2 | 225 | 2.25 |
| 150 | 2 | 250 | 2.99 |
| 150 | 3 | 250 | 4.51 |
| 200 | 2 | 300 | 4.77 |
| 200 | 3 | 300 | 7.19 |
| 250 | 2 | 350 | 6.94 |
| 250 | 3 | 350 | 10.45 |
| 300 | 2 | 400 | 9.52 |
| 300 | 3 | 400 | 14.3 |
| 350 | 3 | 450 | 18.74 |
| 400 | 3 | 500 | 23.78 |
| 450 | 3 | 550 | 29.4 |
| 500 | 3 | 600 | 35.61 |
| 600 | 3 | 700 | 49.9 |
| 700 | 4 | 800 | 88.6 |
| 800 | 4 | 900 | 113.84 |
| 900 | 4 | 1000 | 142.42 |
| 1000 | 4 | 1100 | 173.75 |
| 1200 | 4 | 1300 | 247 |
