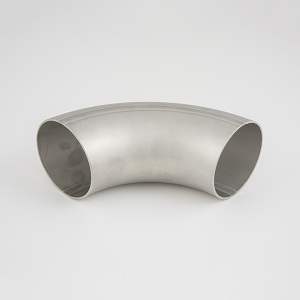

Stainless Steel 1.5D Metric 90° Bends are available in Grade 304/304L and 316/316L.
We hold a large volume of stock in Scotland call 01236 738755 for an immediate quote or email sales@completestainless.co.uk
Centre Line Radius: some mills manufacture Bends and use the Inside Daimeter and others use the Outside Diameter the information listed below is based on the i/d being used for the centre line radius.

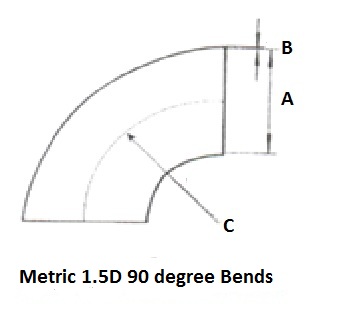

| Inside | Wall | Centreline | Weight |
| Diameter | Thickness | Radius | Per Piece |
| 'A' mm | 'B' mm | 'C' mm | kilos |
| 15 | 1.5 | 23 | 0.03 |
| 20 | 1.5 | 30 | 0.04 |
| 25 | 1.5 | 32.5 | 0.06 |
| 32 | 1.5 | 45 | 0.11 |
| 40 | 2 | 60 | 0.2 |
| 50 | 2 | 73 | 0.31 |
| 65 | 2 | 95 | 0.52 |
| 80 | 2 | 123 | 0.77 |
| 100 | 2 | 150 | 1.2 |
| 100 | 3 | 150 | 1.79 |
| 125 | 2 | 188 | 1.88 |
| 150 | 2 | 225 | 2.69 |
| 150 | 3 | 225 | 4.09 |
