Metric Anti Vibration Pipe Clips

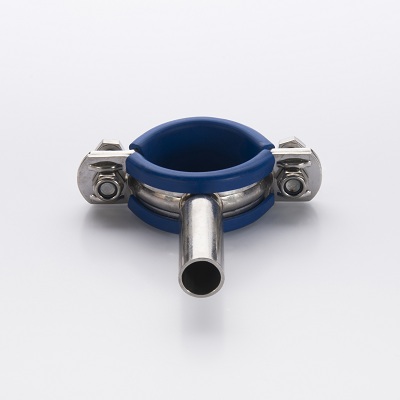

Stainless Steel Metric Blue Insert Pipe Clip - Anti Vibration

Grade 304 we supply with a 19.05 tube stem or a M10 boss.

For an immediate quote please call sales on 01236 738755 or email sales@completestainless.co.uk

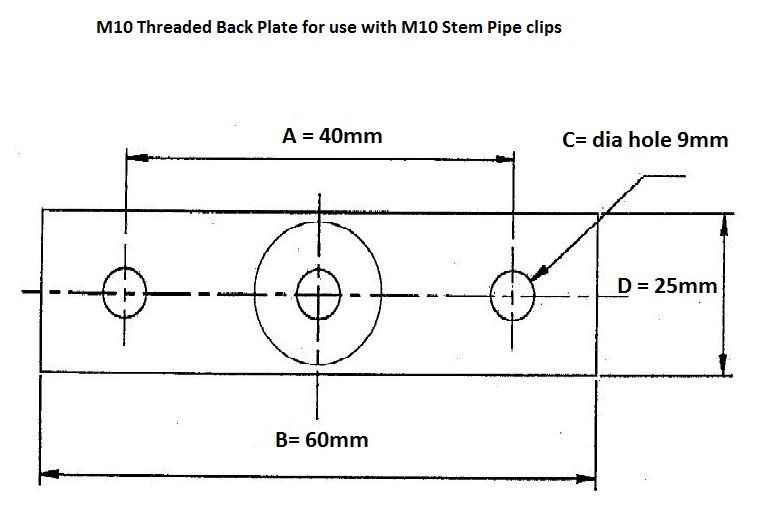

We also stock a Stainless Steel back plate to attach to M10 stems see bottom right hand drawing

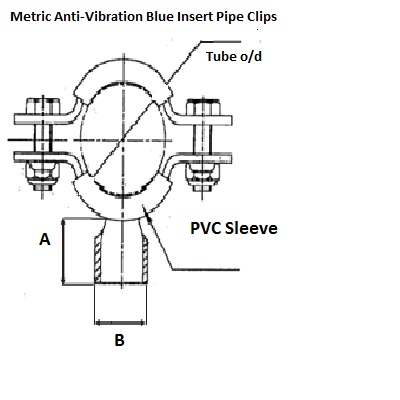

Stem Stem M10 Boss M10 Boss 1/2" BSP Boss 1/2" BSP Boss
Tube O/D Length Dia Length Dia Length Dia
Dim A Dim B Dim A Dim B Dim A Dim B
mm mm mm mm mm mm
18 90 16 28 24.5 28 24.5
28 90 19 28 24.5 28 24.5
44 90 19 28 24.5 28 24.5
54 90 19 28 24.5 28 24.5
68 90 19 28 24.5 28 24.5
84 90 19 28 24.5 28 24.5
104 90 19 28 24.5 28 24.5
154 150 19 28 24.5 28 24.5
204 150 19 28 24.5 28 24.5
