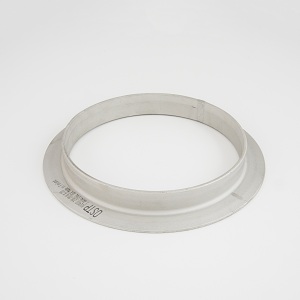

Metric Angle Collars

Stainless Steel Metric Angle Collars

Are available in Grades 304 and 316.

We hold a large volume of stock, we can despatch same day.

For an immeidate quote call 01236 738755 or email sales@completestainless.co.uk

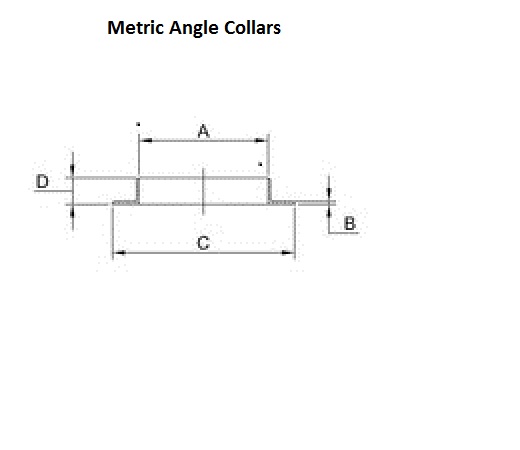

Inside Wall Overall Overall Weight
Diameter Thickness Diameter Height Per Piece
'A' mm 'B' mm 'C' mm 'D' mm Kilos
200 4 260 30 1
250 4 310 30 1.5
300 4 360 30 1.78
350 4 430 40 2.84
400 4 480 40 3.22
450 4 530 40 3.6
500 4 580 40 3.98
600 4 680 40 4.74
700 5 800 50 8.67
800 5 900 50 9.85
900 5 1000 50 11.04
1000 5 1100 50 12.23
1200 5 1300 50 14.67
