Stainless Steel DIN Hygienic Unions DIN 11851-1

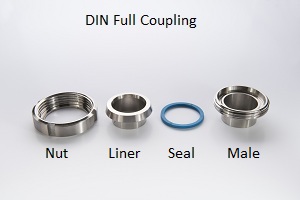

Standard Couplings are made up of a Nut, Machined Liner, Blue EPDM Seal and Male Part.
There are different types of Seal: White=PTFE, Blue=EPDM, Green=Viton and Black= Nitrile
We also stock DIN BLank Liners, DIN C Spanners, DIN Male or Female ended 90's, 45's, Tees and Hose Tails.
For an immediate quote please call sales on 01236 738755 or email sales@completestainless.co.uk

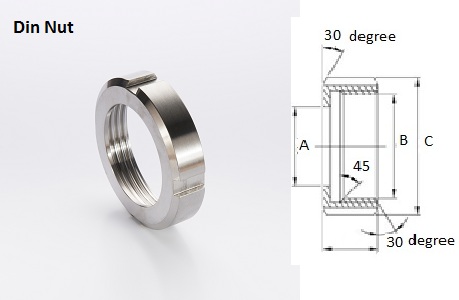

Din Nut
| 1" | 1.5" | 2" | 2.5" | 3" | 4" | |
| A | 36 | 49 | 62 | 80 | 94 | 114 |
| B |
RD52x 1/6 |
RD65x 1/6 |
RD78x 1/6 |
RD95x 1/6 |
RD110x 1/4 |
RD130x 1/4 |
| C | 63 | 78 | 92 | 112 | 127 | 148 |
| L | 21 | 21 | 22 | 25 | 29 | 31 |
| Number of SLOTS | 4 | 4 | 4 | 4 | 6 | 6 |

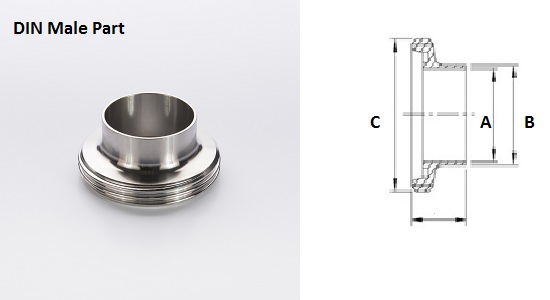

Din Male Part
|
|
1" | 1.5" | 2" | 2.5" | 3" | 4" |
| A | 22.1 | 34.8 | 47.5 | 60.2 | 72.9 | 97.6 |
| B | 25.4 | 38.1 | 50.8 | 63.5 | 76.2 | 101.6 |
| C |
RD52 x 1/6 |
RD65 x 1/6 |
RD78 x 1/6 |
RD95x 1/6 |
RD110 x 1/4 |
RD130 x 1/4 |
| L | 29 | 33 | 35 | 40 | 45 | 54 |

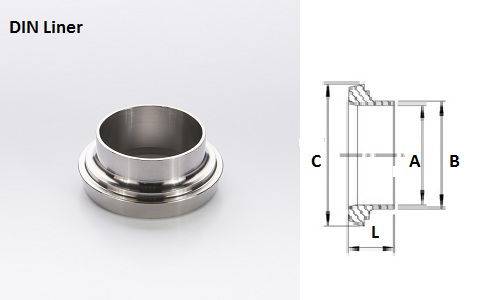

DIN Liner
| 1" | 1.5" | 2" | 2.5" | 3" | 4" | |
| A | 22.1 | 34.8 | 47.5 | 60.2 | 72.9 | 97.6 |
| B | 25.4 | 38.1 | 50.8 | 63.5 | 76.2 | 101.6 |
| C | 44 | 56 | 68.5 | 86 | 100 | 121 |
| L | 22 | 26 | 28 | 32 | 37 | 44 |

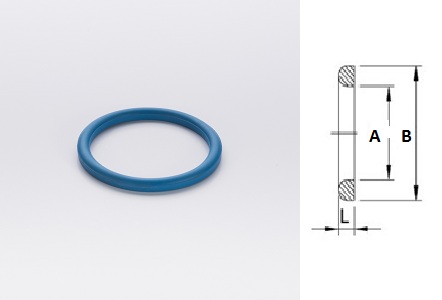

DIN Seal EPDM
| 1" | 1.5" | 2" | 2.5" | 3" | 4" | |
| A | 30 | 42 | 54 | 71 | 85 | 104 |
| B | 40 | 52 | 64 | 81 | 95 | 114 |
| L | 5 | 5 | 5 | 5 | 5 | 6 |
