Swept Tees, Y-pieces, Crosses, U Bends and Seagull Tees

Hygienic Fittings in Grade 316L

Swept Tee's,

Y-Pieces,

Equal Crosses

180° Bends

Seagull Tees

For an immediate quote call sales on 01236 738755 or email sales@completestainless.co.uk

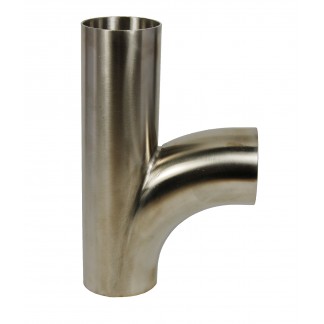

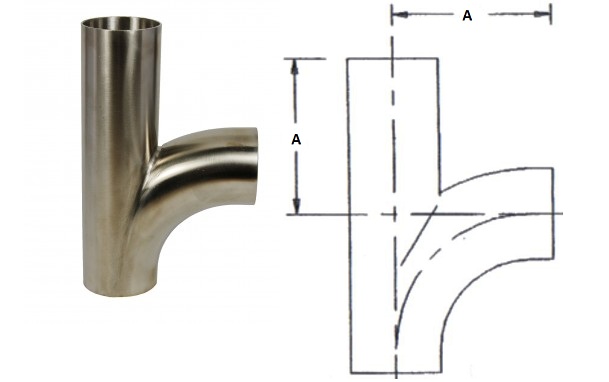

Swept Tee Hygienic

O/D SIZE

O/D SIZE

DIM A on drawing

Inch

mm

mm

1”

25.4

44

1 1/2”

38.1

64

2”

50.8

89

2 1/2”

63.5

114

3”

76.2

134

4”

101.6

174

6”

154mm

225

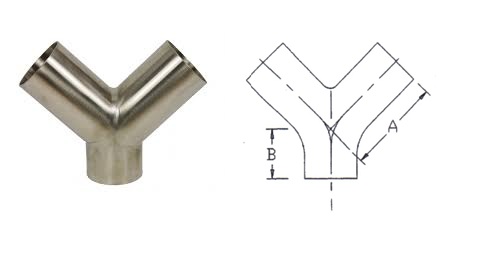

Y Piece Hygienic

O/D

O/D

DIM A

DIM B

Inch

mm

mm

mm

1”

25.4

44

22

1 1/2”

38.1

64

31

2”

50.8

89

44

2 1/2”

63.5

114

58

3”

76.2

134

67

4”

101.6

174

85

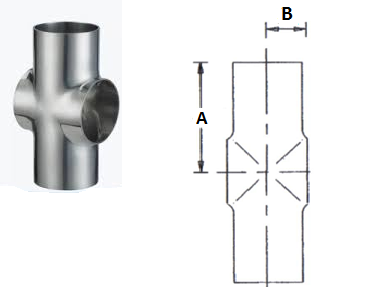

Equal Cross (Pulled) Hygienic

O/D

O/D

DIM A

DIM B

Inch

mm

mm

mm
1” 25.4 44 15
1 1/2” 38.1 64 22
2” 50.8 89 28
2 1/2” 63.5 114 35
3” 76.2 134 41
4” 101.6 174 54

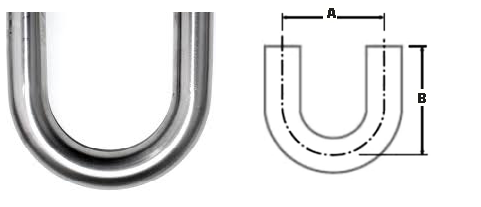

180° U Bend Hygienic

O/D

O/D

DIM A

DIM B

Inch

mm

mm

mm
0.75” 19.05 105 73
1” 25.4 76.2 76.2
1 1/2” 38.1 114.3 114.3
2” 50.8 152.4 127
2 1/2” 63.5 190.5 146.1
3” 76.2 228.6 165.1
4” 101.6 304.8 215.9

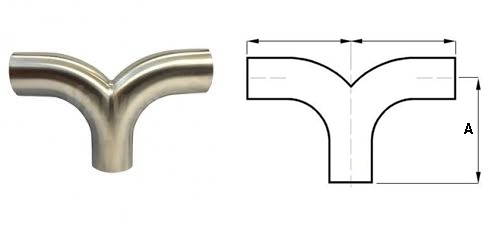

Seagull Tee Hygienic

O/D

O/D

DIM A

Inch

mm

mm
1” 25.4 65
1 1/2” 38.1 85
2” 50.8 110
2 1/2” 63.5 135
3” 76.2 155
4” 101.6 195
