Sight Glasses

Hygienic Sight Glasses in Stainless Steel

We stock 2 types CSE and AWH

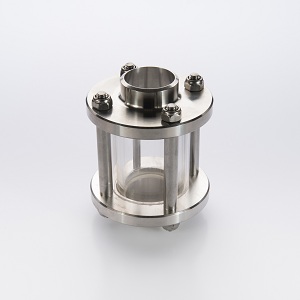

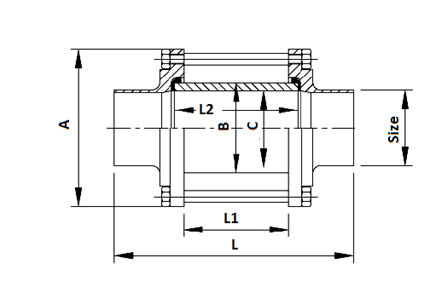

CSE In-Line Sight Glass

SIZE A B C L L1 L2
Inch mm mm mm mm mm mm mm
1/2” 12.7 47 15 10.2 106 80 90
3/4” 19.05 47 22 17 106 80 90
1” 25.4 79 32 26 148 80 90
1 1/2” 38.1 85 40 34 156 80 90
2” 50.8 105 60 50 160 80 90
2 1/2” 63.5 112 75 65 160 80 90
3” 76.2 125 85 75.4 162 80 90
4” 101.6 157 110 100 167 80 90

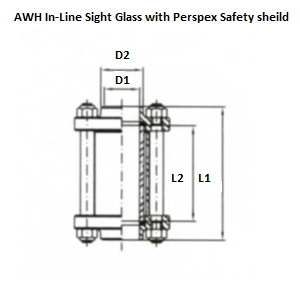

AWH In-Line Sight Glass

Tube OD   D1 D2 L1 L2 Pressure Weight
Inch mm mm mm mm mm Bar (max) KG
1” 25.4 22.9 28 96 70 10 0.72
1 1/4” 31.75 29.3 35 102 70 10 0.78
1 1/2” 38.1 35.1 41 110 70 10 1.12
2” 50.8 47.8 54 110 70 10 1.38
2 1/2” 63.5 60.5 68 124 85 10 1.9
3” 76.2 72.1 78 132 85 8 2.35
4” 101.6 97.6 104 167 115 7 2.8
