Fittings with RJT Ends

Stainless Steel RJT Hygienic Fittings:

Please scroll down for dimesnions for the following RJT Fittings

RJT Blank Liner.......RJT Blank Nut and Chain.......RJT Hose Tail

RJT to BSP Adaptor.......RJT Reducing Liner........RJT Spanner

RJT Male/Male Butterfly Valves

Call Sales for an immediate quote on 01236 738755 or email sales@completestainless.co.uk

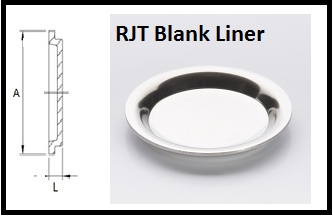

RJT Blank Liner

  1" 1.5" 2" 2.5" 3" 4"
A 41.3 54 66.7 79.4 92.1 117.5
L 8.7 8.7 8.7 8.7 8.7 8.7

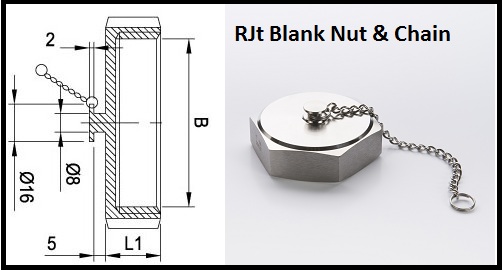

RJT Blank Nut & Chain

  1" 1.5" 2" 2.5" 3" 4"
B 42.66 x 8 TPI WHIT 54.96 x 8 TPI WHIT 67.92 x 6 TPI WHIT 80.62 x 6 TPI WHIT 93.32 x 6 TPI WHIT 118.72 x 6 TPI WHIT
L1 23.5 23.5 23.5 23.5 23.5 23.5
RJT  Blank Nut & Chain

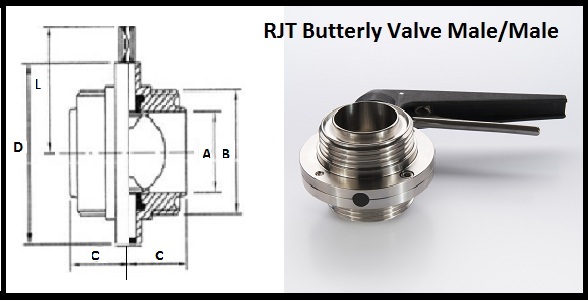

RJT Male/Male Butterfly Valve

Size   A B C D L
Inch mm mm mm mm mm mm
1” 25.4 22.1 45.72 x 8T Whit 34 79 61
1.5” 38.1 34.8 58.42 x 8T Whit 38 85 64.3
2” 50.8 47.5 72.72 x 6T Whit 40 105 74.3
2.5” 65.3 60.2 85.42 x 6T  Whit 40 112 77.6
3” 76.2 72.2 96.12 x 8T  Whit 41 125 84.3
4” 101.6 97.6 123.52 x 6T Whit 50 157 101.6

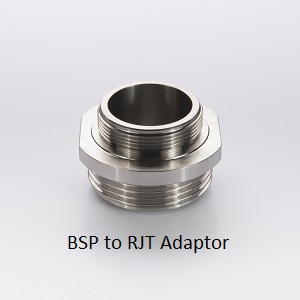

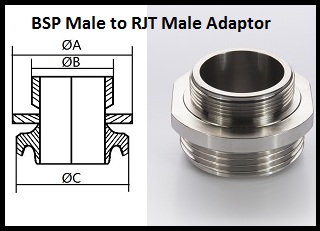

BSP Male to RJT Male Adaptor

Tube o/d SIZE Tube o/d size A B C
in Inches in mm mm mm mm
1” 25.4 50 33.7 45.7
1 1/2” 38.1 65 48.3 58.4
2” 50.8 75 60.3 72.7
2 1/2” 63.5 100 76.1 85.4
3” 76.2 110 88.9 98.1

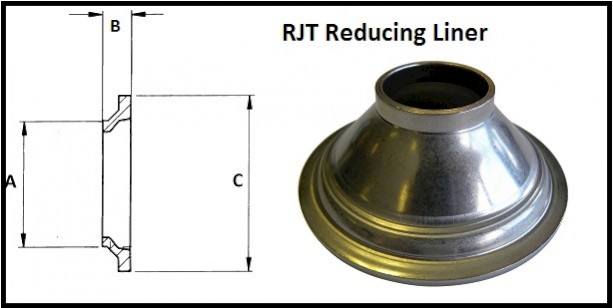

RJT Reducing Liner

To suit o/d tube sizes Overall  Dia of Overall Length
  Large RJT End = DIM C of Reducer = Dim B

1 1/2” x 1” 54 29
2” x 1” 66.7 30
2” x 1 1/2” 66.7 13
2 1/2” x 1 1/2” 79.4 13
2 1/2” x 2” 79.4 13
3” x 1 1/2” 92.1 15
3” x 2” 92.1 13
3” x 2 1/2” 92.1 13
4” x 2 1/2” 117.8 28
4” x 3” 117.8 28

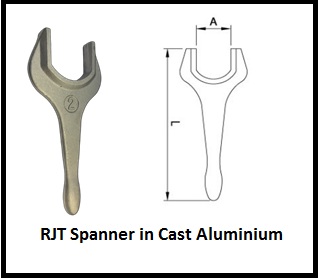

RJT Spanner Cast Aluminium

  1" 1.5" 2" 2.5" 3" 4"
Dim A 51.8 66 80.4 93.2 106.3 121.5
Dim L 240 288 300 326 440 448
