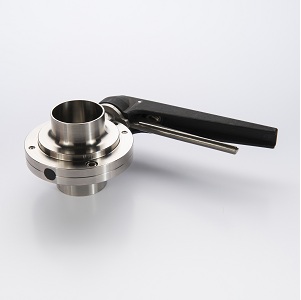

Hygienic Butterfly Valve Stainless Steel with Plain Ends
We can also offer RJT Male Ends, SMS Ends, Din Ends, IDF Ends and Tri Clover Ferrule Ends. We can supply with either Stainless Steel Handles or Black Plastic, we supply Actuators for these valves see the Actuators Page on this site.
For an immediate quote call Sales on 01236 738755 or email sales@completestainless.co.uk

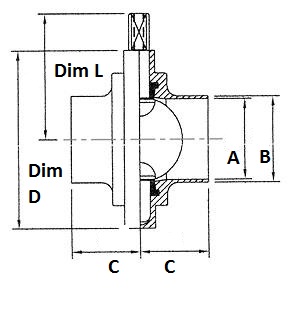

See drawing on the right
| Size | A | B | C | D | L | |
| Inch | mm | mm | mm | mm | mm | mm |
| 1” | 25.4 | 22.1 | 25.4 | 34 | 79 | 61 |
| 1 1/2” | 38.1 | 34.6 | 38.1 | 38 | 85 | 64.3 |
| 2” | 50.8 | 47.5 | 50.8 | 40 | 105 | 74.3 |
| 2 1/2” | 65.3 | 60.2 | 63.5 | 40 | 112 | 77.6 |
| 3” | 76.2 | 72.2 | 76.2 | 41 | 125 | 84.3 |
| 4” | 101.6 | 97.6 | 101.6 | 44 | 157 | 101.6 |
| 6” | 152.4 | 146.8 | 152.4 | 43 | 214 | 138.9 |
