Actuators

Listed below are the details of C3, C2 and C101 Butterfly Valve Actuators

The Control switches are on a seperate page.

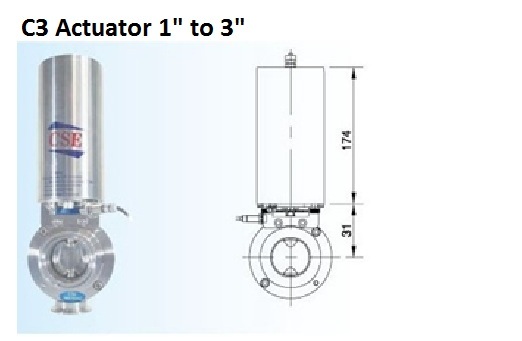

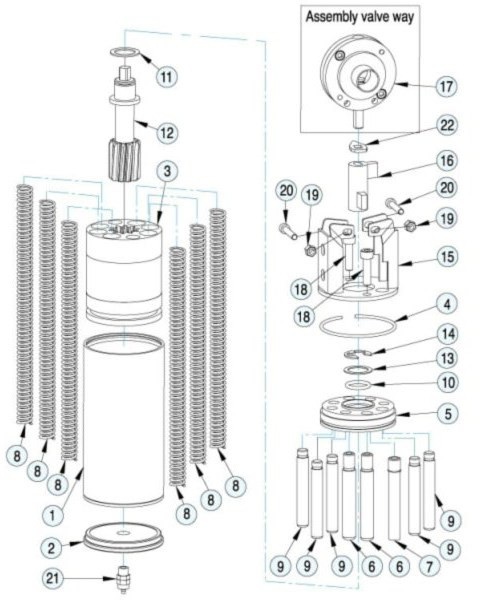

C3 Actuator

The C3 Actuator is a single acting Air open / Spring close unit for use with

the 1” - 3” Butterfly Valve with a disc head size of 12mm X 8mm

This Actuator is suitable for use with Proximity switches.

Control Methods:

Can be fitted with an M12 screw proximity switch (PNP or NPN).

Accessories: 2 x M6 X 35 socket cap screw, 4 x washer, 2 x M6 nut,

1 x 1/8pt quick coupler.

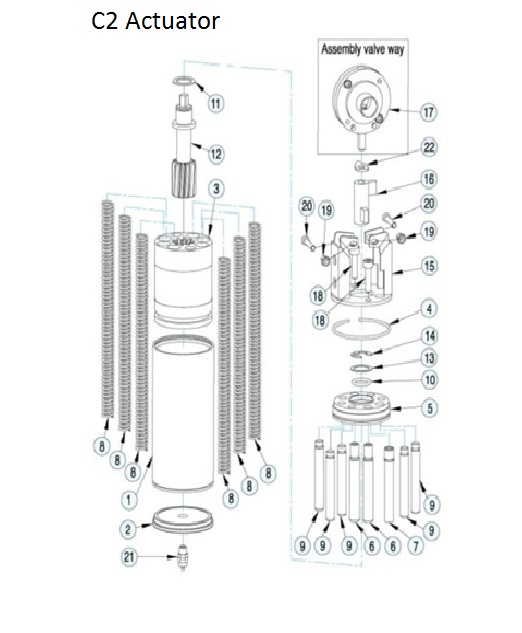

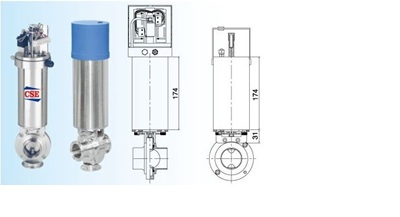

C2 Actuator The C2 Actuator is a single acting Air open / Spring close unit
for use with 1” - 3” Butterfly Valves with a disc head size of 12mm x 8mm
This Actuator is suitable for use with the Control Top. Control Methods:
Can be fitted with a pre-assembled control top containing 1 x 24v DC solenoid valve and 2 x micro switches

Accessories: 2 x M6 X 35 socket cap screw, 4 x washer, 2 x M6 nut, 1 x 1/8pt quick coupler.

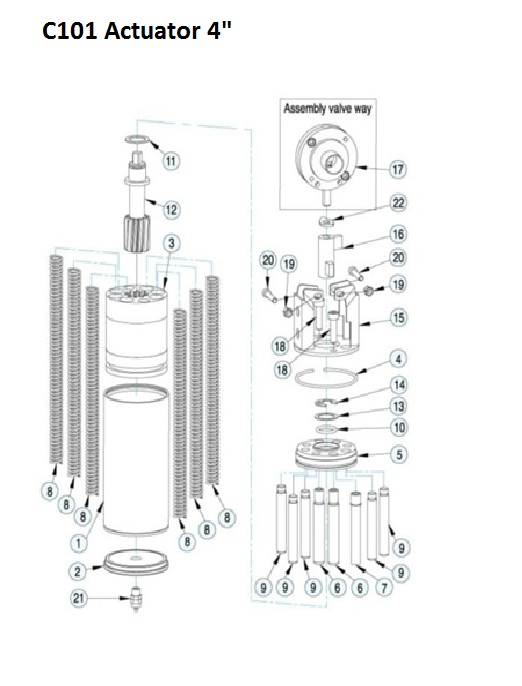

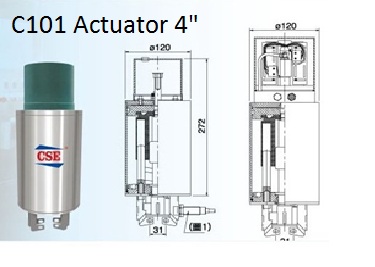

The C101 Actuator is a single acting Air open / Spring close unit

for use with 4” Butterfly Valves with a disc head size of 12mm X 12mm.

This Actuator is suitable for use with the Control Top or Proximity switches.

Control Methods

A. Can be fitted with an M12 screw proximity switch (PNP or NPN).

B. Can be fitted with a pre-assembled control top

containing 1 x 24v DC solenoid valve and 2 x micro switches

Accessories: 2 x M6 X 40 socket cap screw, 4 x washer,

2 x M6 nut, 1 x 1/8pt quick couple
