5D 90° Hygienic bends are available in Stainless Steel grade 316. The Bends have a bead rolled internal, this provides a smooth internal finish and eliminates any cracks or crevices.The external is satin polished. |
|

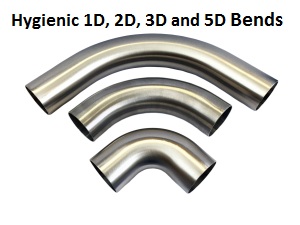

Our 90° bends are also available as: 1D, 1.5D, 2D and 3D . We can supply any of the bends with a Male or female coupling fitting welded to one end or both. For an immediate quote please call sales on 01236 738755 or email sales@completestainless.co.uk |

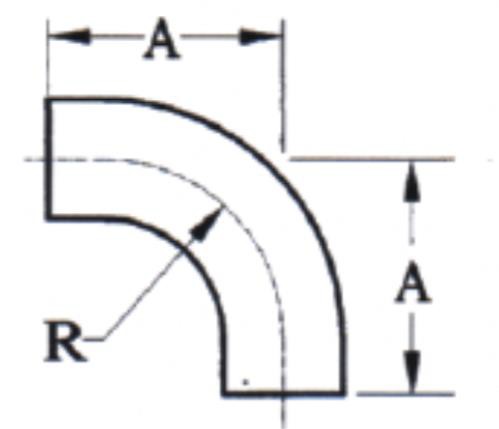

| OD | OD | Dimension A | Dimension R |
| Inch | mm | mm | mm |
| 1” | 25.4 | 152 | 127 |
| 1 1/2” | 38.1 | 215.5 | 190.5 |
| 2” | 50.8 | 219 | 254 |
| 2 1/2” | 63.5 | 347.5 | 317.5 |
| 3” | 76.2 | 411 | 381 |
| 4” | 101.6 | 538 | 508 |
