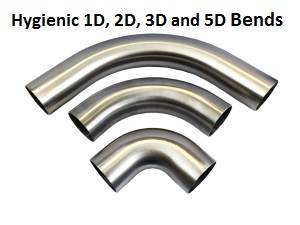

3D 90° Hygienic bends are available in Stainless Steel grade 316. The Bends have a bead rolled internal, this provides a smooth internal finish and eliminates any cracks or crevices.The external is satin polished. |
|
Our 90° bends are also available as: 1D, 1.5D, 2D and 5D . We can supply any of the bends with a Male or female coupling fitting welded to one end or both. For an immediate quote please call sales on 01236 738755 or email sales@completestainless.co.uk |

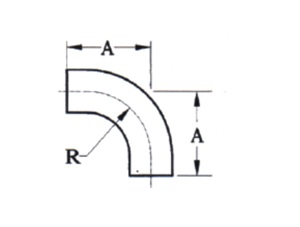

| OD | OD | Wall | Dimension A | Dimension R |
| Inch | mm | mm | mm | |
| 0.5” | 12.7 | 1.6 | 58 | 40 |
| 0.75” | 19.05 | 1.6 | 77 | 60 |
| 1” | 25.4 | 1.6 | 115 | 75.9 |
| 1 1/2” | 38.1 | 1.6 | 140 | 114.3 |
| 2” | 50.8 | 1.6 | 225 | 153 |
| 2 1/2” | 63.5 | 1.6 | 230 | 190.5 |
| 3” | 76.2 | 1.6 | 240 | 228.6 |
| 4” | 101.6 | 2 | 365.6 | 304.8 |
