Hygienic 90 degree bends 1D

90° bends 1D or 1 x the diameter radius or also called short radius hygienic 90's available in Stainless Steel grade 316. The Bends come with a bead rolled internal, this provides a smooth internal finish and eliminates any cracks or crevices.The external is satin polished.

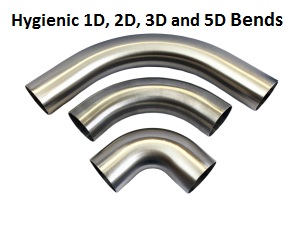

We also offer: 1.5D, 2D, 3D and 5D 90 degree Bends. We can supply any of the bends with Male or female coupling fittings pre welded.

For an immediate quote please call sales on 01236 738755 or

email sales@completestainless.co.uk






Hygienic 90° Bends 1D

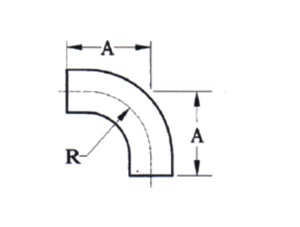

OD  OD  Dimension A Dimension R
Inch mm mm mm
1” 25.4 55 25
1 1/2” 38.1 70 38
2” 50.8 82 51
2 1/2” 63.5 105 64
3” 76.2 110 76
4” 101.6 150 101.6
