Backing Flanges to suit Hygienic Collars

Backing Flanges to suit Hygienic Collars

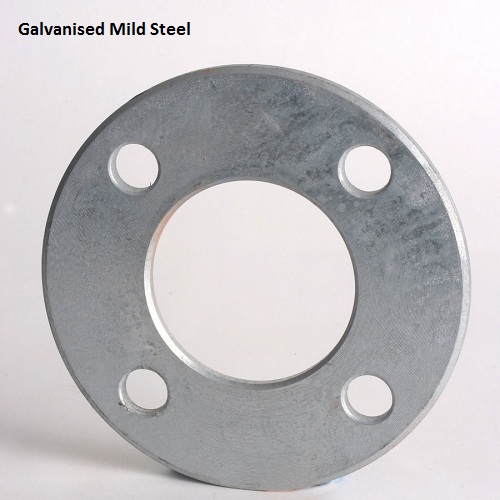

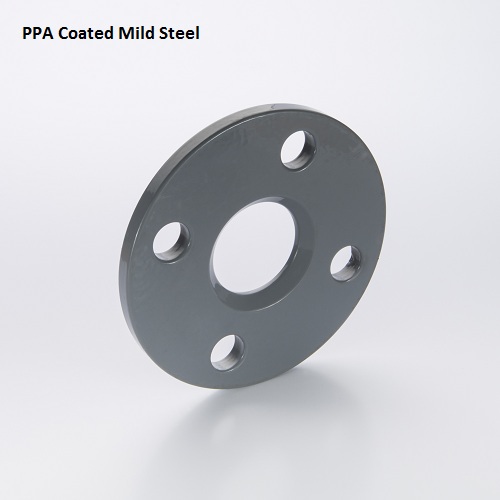

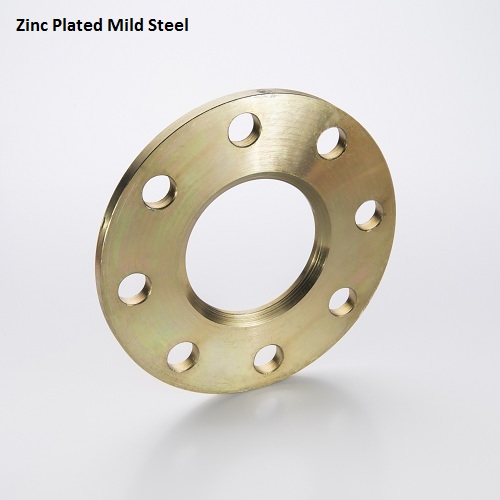

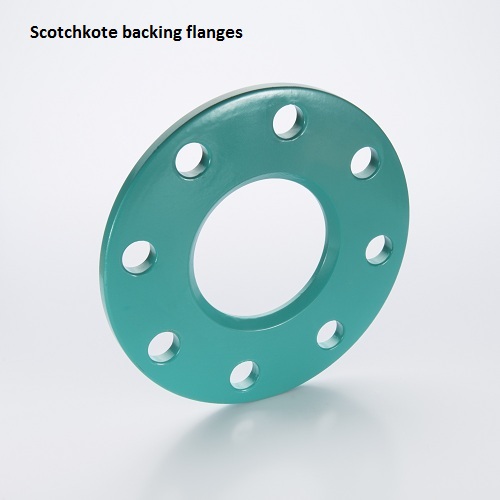

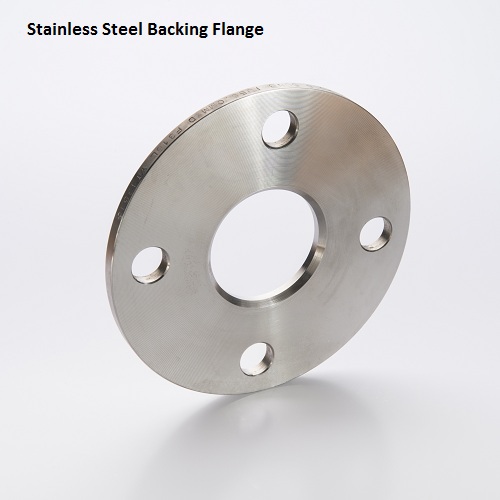

Available as Zinc plated, Stainless Steel, Scotchkot, PPA and Galvanised

For an immediate quote call sales on 01236 738755 or email sales@completestainless.co.uk

Tube Size Drilling OD Holes Hole Dia P.C.D Thick 45° Chamfer

1" o/d

 Table "D" 114.3 4 12.7 82.6 10 3
25.4mm o/d Table "E" 114.3 4 12.7 82.6 10 3
PN 10 115 4 14 85 10 3
PN 16 115 4 14 85 10 3
ASA 150 108 4 15.7 79.2 10 3
Tube Size Drilling OD Holes Holes Dia P.C.D Thick 45° Chamfer

1 1/2" o/d

 Table "D" 133.4 4 12.7 98.4 10 3
38.1mm o/d Table "E" 133.4 4 12.7 98.4 10 3
PN 10 150 4 18 110 10 3
PN 16 150 4 18 110 10 3
ASA 150 127 4 15.7 98.6 10 3
Tube Size
Drilling OD Holes Hole Dia P.C.D Thick 45° Chamfer

2"o/d

 Table "D" 152.2 4 15.9 114.3 10 3
50.8mm o/d Table "E" 152.2 4 15.9 114.3 10 3
PN 10 165 4 18 125 10 3
PN 16 165 4 18 125 10 3
ASA 150 152.4 4 19.1 120.7 10 3
Tube Size
Drilling OD Holes Hole Dia P.C.D Thick 45° Chamfer

2 1/2" o/d

 Table "D" 165.1 4 15.9 127 10 3
63.5mm o/d Table "E" 165.1 4 15.9 127 10 3
PN 10 185 4 18 145 10 3
PN 16 185 4 28 145 10 3
ASA 150 177.8 4 19.1 139.7 10 3
Tube Size
Drilling OD Holes Hole Dia P.C.D Thick 45° Chamfer

3" o/d

 Table "D" 184.2 4 15.9 146.1 10 3
76.2mm o/d Table "E" 184.2 4 15.9 146.1 10 3
PN 10 200 8 18 160 10 3
PN 16 200 8 18 160 10 3
ASA 150 190.5 4 19.1 152.4 10 3
Tube Size
Drilling OD Holes Hole Dia P.C.D Thick 45° Chamfer

4" o/d

 Table "D" 215.9 4 15.9 177.8 10 4
101.6mm o/d Table "E" 215.9 8 15.9 177.8 10 3
PN 10 220 8 18 180 10 4
PN 16 220 8 18 180 10 4
ASA 150 228.5 8 19.1 190.5 10 4
