Imperial sizes listed below, we also stock the full range of metric sizes.

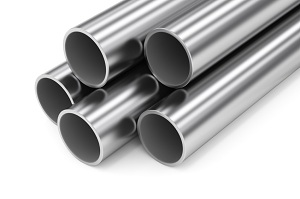

Available in Stainless Steel grades 304L and 316L
For an immediate quote please call sales on 01236 738755 or email sales@completestainless.co.uk
| Tube o/d | Tube o/d | Wall | Wall | Pressure Bar | Kilos |
| inches | mm | SWG | MM | minus 29C to + 38 C | per mtr |
| 1/8" | 3.18 | 20 | 0.914 | 885 | 0.052 |
| 3/6" | 4.76 | 20 | 0.914 | 570 | 0.088 |
| 1/4" | 6.35 | 20 | 0.914 | 410 | 0.124 |
| 1/4" | 6.35 | 18 | 1.218 | 605 | 0.157 |
| 1/4" | 6.35 | 16 | 1.625 | 820 | 0.192 |
| 3/8" | 9.53 | 20 | 0.914 | 265 | 0.197 |
| 3/8" | 9.53 | 18 | 1.218 | 385 | 0.253 |
| 3/8" | 9.53 | 16 | 1.625 | 530 | 0.321 |
| 1/2" | 12.7 | 20 | 0.914 | 195 | 0.27 |
| 1/2" | 12.7 | 18 | 1.218 | 280 | 0.35 |
| 1/2" | 12.7 | 16 | 1.625 | 380 | 0.451 |
| 5/8" | 15.88 | 20 | 0.914 | 155 | 0.342 |
| 5/8" | 15.88 | 18 | 1.218 | 220 | 0.447 |
| 3/4" | 15.88 | 20 | 0.914 | 130 | 0.415 |
| 3/4" | 15.88 | 18 | 1.218 | 180 | 0.544 |
| 3/4" | 15.88 | 16 | 1.625 | 245 | 0.709 |
| 1" | 25.4 | 18 | 1.218 | 135 | 0.738 |
| 1" | 25.4 | 16 | 1.625 | 180 | 0.967 |
