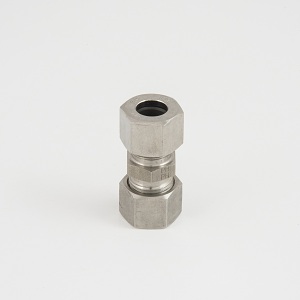

Twin Ferrule, Grade 316L Stainless Steel

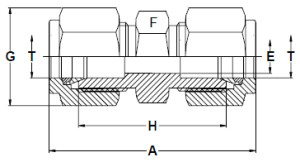

| TUBE OD | A | E | F | G | H |
| INCH | MM | MM | MM | MM | MM |
| 1/8" | 35.6 | 2.4 | 11 | 11 | 22.4 |
| 1/4" | 40.9 | 4.8 | 14 | 14 | 26.2 |
| 5/16" | 42.9 | 6.3 | 14 | 16 | 28.2 |
| 3/8" | 45 | 7.1 | 16 | 17 | 30.2 |
| 1/2" | 51.3 | 10.4 | 22 | 22 | 31 |
| 5/8" | 52 | 12.7 | 24 | 25 | 31.8 |
| 3/4" | 53.6 | 15.8 | 27 | 28.5 | 33.3 |
| 7/8" | 55.2 | 18.2 | 30 | 32 | 34.8 |
| 1" | 64.8 | 22.3 | 35 | 38 | 40.4 |
