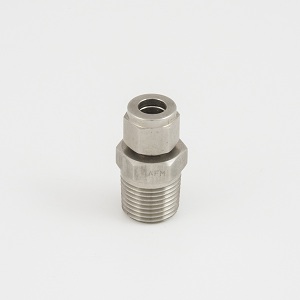

Stainless Steel Grade 316L
We can also offer in Single Ferrule for an immediate quote call sales on 01236 738755

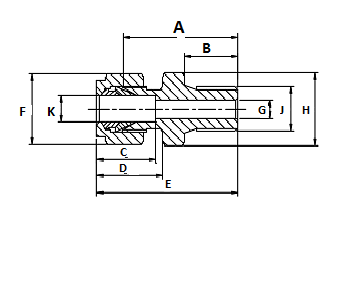

| K Tube o/d | J BSPP Thread | A | B | C | D | E | F | G | H |
| 1/8" | 1/8" | 23.4 | 7.1 | 13.5 | 16.3 | 30 | 11.11 | 2.4 | 14.3 |
| 1/8" | 1/4" | 28.7 | 11.2 | 13.5 | 16.3 | 35.3 | 11.11 | 2.4 | 19.1 |
| 3/16" | 1/8" | 24.2 | 7.1 | 14.3 | 16.7 | 30.4 | 12.7 | 3.2 | 14.3 |
| 3/16" | 1/4" | 29.4 | 11.2 | 14.3 | 16.7 | 36 | 12.7 | 3.2 | 19.1 |
| 1/4" | 1/8" | 24.9 | 7.1 | 15.1 | 17.9 | 32.3 | 14.3 | 4.8 | 14.3 |
| 1/4" | 1/4" | 30.2 | 11.2 | 15.1 | 17.9 | 37.6 | 14.3 | 4.8 | 19.1 |
| 1/4" | 3/8" | 31.5 | 11.2 | 15.1 | 17.9 | 38.9 | 14.3 | 4.8 | 22.2 |
| 1/4" | 1/2" | 37.3 | 14.2 | 15.1 | 17.9 | 44.7 | 14.3 | 4.8 | 27 |
| 5/16" | 1/4" | 31.8 | 11.2 | 16.7 | 19.5 | 39 | 15.9 | 6.4 | 19.1 |
| 3/8" | 1/4" | 31.8 | 11.2 | 16.7 | 19.5 | 39.1 | 17.5 | 7.1 | 19.1 |
| 3/8" | 3/8" | 33 | 11.2 | 16.7 | 19.5 | 40.4 | 17.5 | 7.1 | 22.2 |
| 3/8" | 1/2" | 38.9 | 14.2 | 16.7 | 19.5 | 46.2 | 17.5 | 7.1 | 27 |
| 1/2" | 1/4" | 32.5 | 11.2 | 21.8 | 23 | 42.3 | 22.2 | 7.1 | 20.6 |
| 1/2" | 3/8" | 33 | 11.2 | 21.8 | 23 | 43.2 | 22.2 | 10.3 | 22.2 |
| 1/2" | 1/2" | 38.9 | 14.2 | 21.8 | 23 | 49 | 22.2 | 10.3 | 22.2 |
| 1/2" | 3/4" | 38.9 | 15.8 | 21.8 | 23 | 51 | 22.2 | 10.3 | 33.3 |
| 5/8" | 1/2" | 38.9 | 14.2 | 21.4 | 23.8 | 49 | 25.4 | 12.7 | 27 |
| 5/8" | 3/4" | 38.9 | 15.8 | 21.4 | 23.8 | 51 | 25.4 | 12.7 | 33.3 |
| 3/4" | 1/2" | 38.9 | 14.2 | 21.8 | 24.6 | 49 | 28.6 | 12.7 | 27 |
| 3/4" | 3/4" | 42.3 | 15.8 | 21.8 | 24.6 | 52.8 | 28.6 | 15.9 | 33.3 |
| 1" | 3/4" | 43.7 | 15.8 | 26.6 | 21.4 | 56.2 | 38.1 | 18.3 | 34.9 |
| 1" | 1" | 47.8 | 18.3 | 26.6 | 31.4 | 59.9 | 38.1 | 22.2 | 41.3 |
