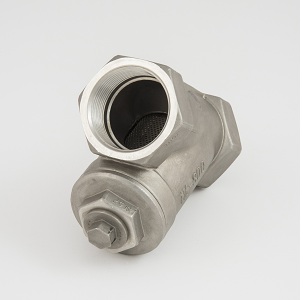

Parallel Thread Grade 316 Strainer Mesh 1mm Perforations

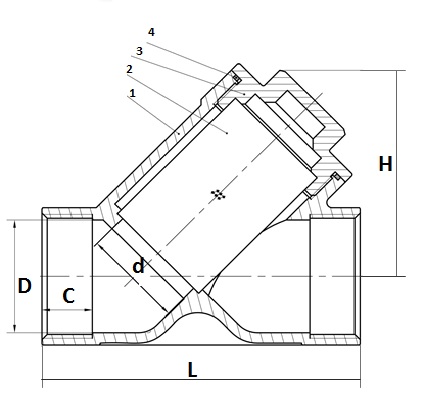

| SIZE | d | D | H | C | L | CV | Kg |
| BSPP | FACTOR | ||||||
| 1/4" | 11 | 11.6 | 37.8 | 11 | 50 | 6 | 0.15 |
| 3/8" | 12 | 14.5 | 42 | 12 | 60 | 12 | 0.2 |
| 1/2" | 15 | 17.5 | 44.7 | 14 | 65 | 19 | 0.2 |
| 3/4" | 20 | 23 | 52.1 | 15 | 75 | 37 | 0.3 |
| 1" | 25 | 29 | 65.7 | 17 | 90 | 64 | 0.45 |
| 1 1/4" | 32 | 38 | 70 | 19 | 110 | 103 | 0.66 |
| 1 1/2" | 38 | 43.5 | 79.5 | 19 | 120 | 143 | 0.9 |
| 2" | 48 | 55 | 95.5 | 22 | 140 | 360 | 1.45 |
| 2 1/2" | 65 | 69 | 125 | 26 | 190 | 440 | 2 |
| 3" | 78 | 81.5 | 144.5 | 28 | 205 | 520 | 3 |
